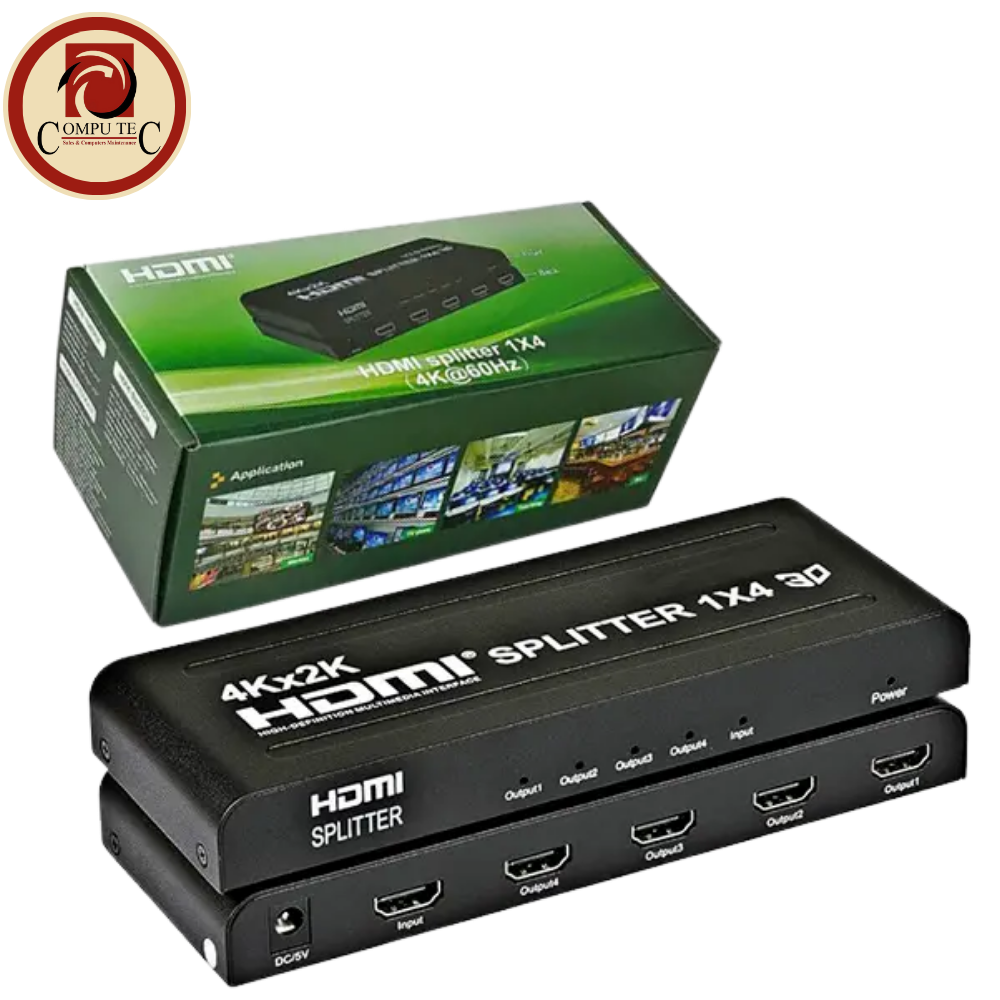

Name: 4K HDMI Splitter 1x4 (1 In 4 Out) HDMI 2.0b Ultra HD 4K@60Hz Full 3D &amp; HDCP 2.2 Distributor.
SKU: 5430946
Availability: InStock

4K HDMI Splitter 1×4 (1 In 4 Out) HDMI 2.0b Ultra HD 4K@60Hz Full 3D & HDCP 2.2 Distributor.

475EGP

Function: 1 HDMI Input to 4 HDMI Outputs (Simultaneous Mirroring).
Resolution: Supports maximum resolution up to 4K Ultra HD ( $3840 \times 2160$ ) at 60Hz.
HDMI Version: Compliant with HDMI 2.0b standards.
Features: Supports Full 3D Video and Deep Color (8/10/12 bit).
Audio: Supports high-definition audio: DTS-HD, Dolby-TrueHD, DTS, Dolby-AC3, DSD.
Bandwidth: High bandwidth transmission up to 600MHz / 6Gbps.
Use Case: Perfect for distributing signals to multiple screens or regenerating signals over long cable runs.

12 متوفر في المخزون

الوصف

“The 4K HDMI Splitter 4 Port (1 In 4 Out) is a high-specification signal distribution device designed for users who require flawless and simultaneous replication of a single HDMI source onto four separate displays or projectors. Engineered with HDMI 2.0b compliance, this splitter stands out by supporting cutting-edge video formats, including the demanding 4K Ultra HD at 60Hz ( $3840 \times 2160$ ), ensuring incredibly smooth and detailed image reproduction.

It features Deep Color support up to 12 bits and is compatible with all previous HDMI standards. Crucially, it manages High-Definition audio formats like Dolby TrueHD and DTS-HD Master Audio. In addition to duplicating the signal, this device functions as an excellent signal regenerator (repeater), which is essential for maintaining signal integrity over long HDMI cable distances, allowing transmission up to 10-15 meters for 4K resolutions and 15-20 meters for 1080P resolutions.”

Features

Feature	Benefit
1x4 Signal Distribution	Wide Coverage: Simultaneously duplicates your video source to four screens, maximizing your audience reach for commercial or large home setups.
HDMI 2.0b & 4K@60Hz	Highest Quality Visuals: Delivers buttery-smooth, high-frame-rate Ultra HD video, essential for fast-paced gaming and crisp professional video.
High Bandwidth (18 Gbps equivalent)	Zero Compromise on Quality: Supports the full data rate needed for $4K@60Hz$ with Deep Color, ensuring uncompressed fidelity for both video and audio.
Signal Regeneration (Repeater)	Flexible Installation: Extends the maximum possible length of your HDMI cable runs without loss of quality, simplifying long-distance installations.
Deep Color (12-bit)	Rich, Lifelike Imagery: Provides a massive increase in color depth, resulting in smoother gradients and more realistic, vibrant pictures.
Plug and Play	Instant Setup: Get your multi-screen system running immediately without the need for complex software or driver installation.

Technical Specifications

Component	Specification
Device Type	HDMI Splitter (1 In 4 Out)
HDMI Version	HDMI 2.0b
Max Resolution	$3840 \times 2160$ @ 60Hz (4K@60Hz)
HDCP Support	Varies (Implied HDCP 2.2 with HDMI 2.0b)
Video Color Format	Deep Color 8/10/12 bit
Max Bandwidth	600 MHz
Max Transmission Rate	6 Gbps (18 Gbps total equivalent)
Supported Audio	DTS-HD / Dolby-trueHD / DTS / Dolby-AC3 / DSD
Cable Distance (4K/30Hz)	Input $\leq 10$ m, Output $\leq 15$ m (AWG26 Standard Cable)
Power Input	AC100V-240V (50/60Hz) ; Output: DC 5V/1A
Extra Features	Full 3D Video Format Support, Signal Regeneration

4K HDMI Splitter 1×4 (1 In 4 Out) HDMI 2.0b Ultra HD 4K@60Hz Full 3D & HDCP 2.2 Distributor.
