HDMI Extender 60M Over Single CAT6 Cable Full HD 1080p Transmission IR Control Support
1,250EGP
-
Signal Type: HDMI (Video and Audio).
-
Transmission Distance: Up to 60 meters (196 feet).
-
Cable Type: Requires 1 x Cat5e/6/7 UTP/FTP LAN Cable.
-
Max Resolution: 1080p Full HD @ 60Hz.
-
Feature: Often includes IR (Infrared) Pass-through.
1 in stock
Description

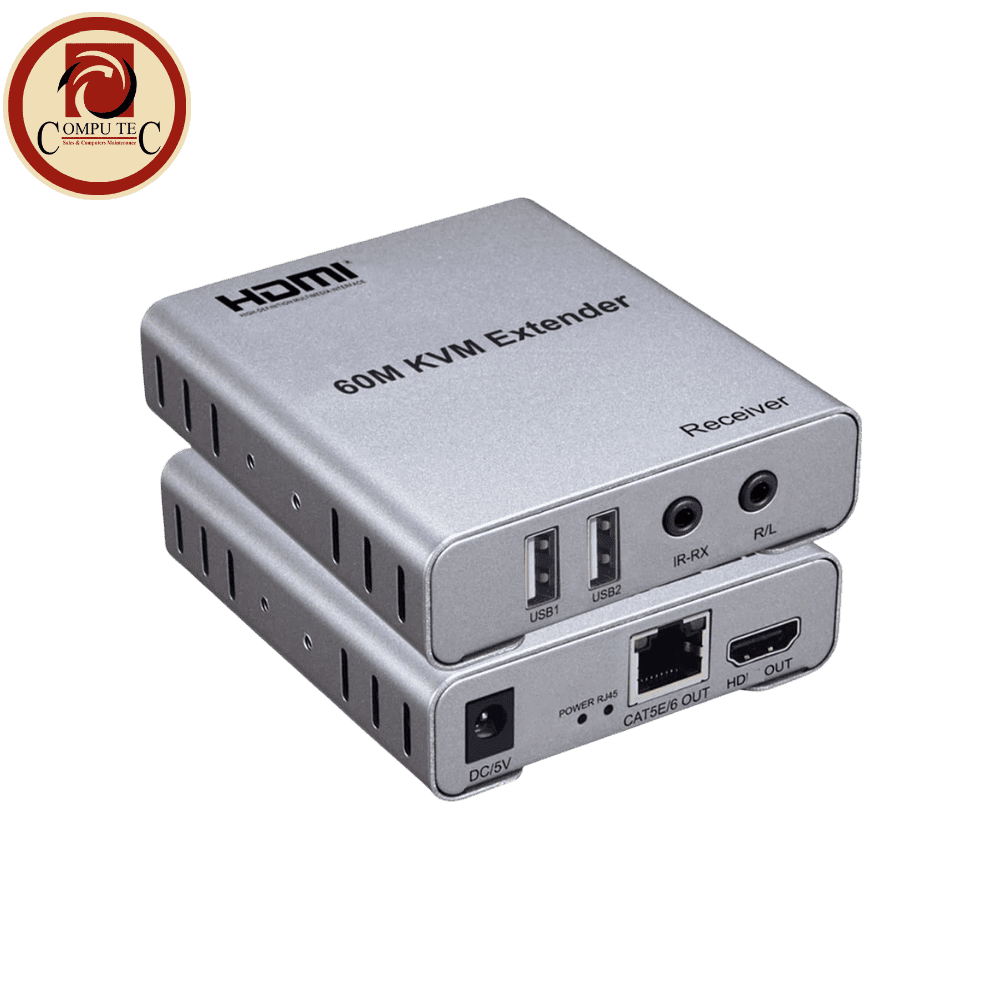

This HDMI Extender system is designed to overcome the distance limitations of standard HDMI cables, allowing you to transmit high-definition video and audio signals up to 60 meters (196 feet) using a single, cost-effective Cat6 or Cat5e LAN cable. The system is composed of two primary units: a Sender (TX) unit that connects to the source device (e.g., set-top box, DVR) and a Receiver (RX) unit that connects to the display (e.g., HDTV, projector). It is engineered to maintain picture quality, supporting 1080p Full HD resolution at 60Hz. Many models of this type also feature an IR (Infrared) pass-through function, allowing you to control the source device remotely from the location of the display unit. This plug-and-play solution requires minimal setup and is ideal for home theaters, corporate presentations, and surveillance systems.
| Feature | Benefit |
| 120M Range Over CAT6 | Maximum Reach & Savings: Provides the longest extension possible using single Ethernet cables, drastically reducing the cost and complexity associated with long-run HDMI fiber or copper. |
| IP/Network Functionality | Scalable Distribution: Enables broadcast/multicast capability via a network switch, allowing one source to feed dozens of displays (1xN distribution). |
| Full HD 1080P @ 60Hz | Excellent Video Quality: Guarantees sharp, smooth, high-definition video, ensuring your content is displayed perfectly even at the remote location. |
| Auto-Adjustment Technology | Stable Transmission: Automatically adjusts the equalizer settings to match the cable length, ensuring optimal video quality without manual configuration. |
| Plug-and-Play Setup | Easy Integration: Simple installation of TX and RX units, compatible with existing network infrastructures without requiring complex software or driver installation. |
| Component | Specification (Typical) |
| Product Type | HDMI Extender Over IP/Ethernet |
| Transmission Media | Single CAT5e / CAT6 (Recommended) |
| Max Extension Distance | 120 meters / 394 feet |
| Max Video Resolution | $1080p$ @ 60Hz |
| Supported Resolutions | $1080p / 1080i / 720p / 576p / 576i / 480p / 480i$ |
| Video Bandwidth | Typically up to 1.65 Gbps |
| Color Depth | 8/10/12 bit Deep Color |
| HDCP Support | HDCP 1.2 / 1.3 Compatible |
| Audio Format Support | Standard Digital Audio (DTS-HD, Dolby-TrueHD, etc.) |
| Power Supply | External DC 5V/1A or 5V/2A (separate adapters for TX and RX) |
