Description

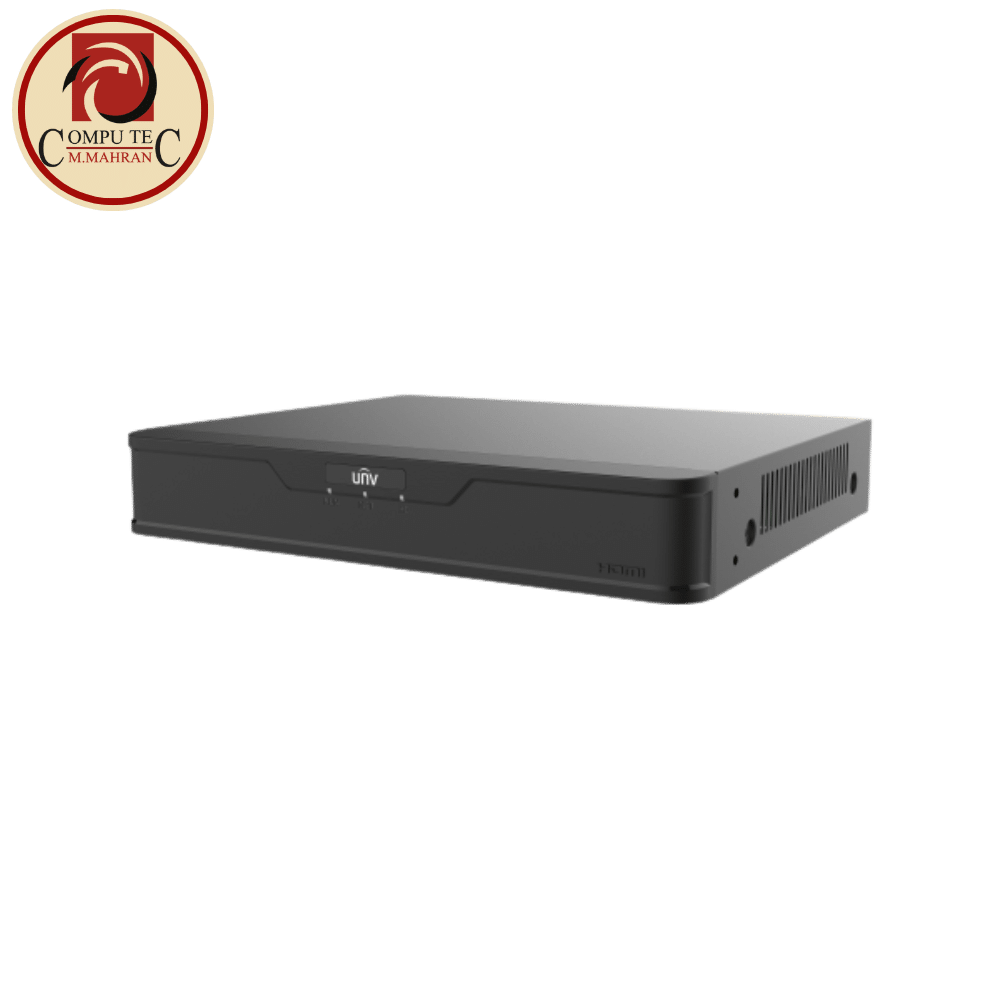

| Model | XVR301-04Q3 | |||||
| Video/Audio Input | ||||||
| Analog Video Input | 4-ch, BNC | |||||
| IP Video Input | 2-ch(only IP up to 6ch), each channel up to 4MP | |||||
| Supported Analog Camera Types | Support AHD input: 8MP@15fps 5MP@20fps 4MP@30fps 1080P@30fps 720P@30fps Support TVI input: 8MP@15fps 5MP@20fps 4MP@30fps 1080P@30fps 720P@30fps Support CVI input: 8MP@15fps 5MP@25fps 4MP@30fps 1080P@30fps 720P@30fps Support CVBS input | |||||
| Audio Input | 1-ch, RCA | |||||
| Audio Compression | G.711U | |||||
| Video/Audio Output | ||||||
| CVBS Output | 1-ch, BNC | |||||
| VGA Output | 1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz | |||||
| HDMI Output | 3840 x 2160/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz | |||||
| Audio Output | 1-ch, RCA | |||||
| Synchronous Playback | 4 | |||||
| Live view display | HDMI/VGA: 1/4/6/8/9 | |||||
| Two-way Audio | 1-ch, RCA | |||||
| Network | ||||||
| Incoming Bandwidth | 40Mbps (Up to 48Mbps after all analog channel conversion) | |||||
| Outgoing Bandwidth | 48Mbps | |||||
| Remote Users | 128 | |||||
| Protocols | TCP/IP, P2P, UPnP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP | |||||
| Browser | IE(IE10/11) for Windows Firefox (version 52.0 and above) for Windows Chrome(version 45 and above) for Windows Edge(version 79 and above) for Windows | |||||
| Encoding | ||||||
| Recording Resolution | 8MP Lite/5MP/5MP Lite/4MP Lite/1080P/720P/CIF | |||||
| Recording Frame Rate | Main stream | Sub stream | ||||
| 8MP Lite@8fps | D1@8fps | |||||
| 5MP Lite @12fps | D1@12fps | |||||
| 4MP Lite@15fps | D1@15fps | |||||
| 1080P@15fps | D1@15fps | |||||
| 720p@30fps | D1@30fps | |||||
| Audio Sample Rate | 8KHz,16 bit per channel | |||||
| Audio Bit Rate | 64Kbps per channel | |||||
| Decoding | ||||||
| Capability | Analog: 4 x 8MP Lite@8, 4x 5MP Lite@12, 4x 4MP Lite@15, 4 x 1080P@15 IP: 1 x 4MP@30, 2 x 1080P@30 | |||||
| Hard Disk | ||||||
| SATA | 1 SATA interface | |||||
| Capacity | Up to 8TB for each HDD (The maximum HDD capacity varies with environment temperature) | |||||
| General Alarm | ||||||
| General Alarm | Motion detection | |||||
| Alert Alarm | IP Conflict, Network Disconnected, Disk offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal | |||||
| External Interface | ||||||
| Network Interface | 1 RJ45 10M/100M self-adaptive Ethernet Interface | |||||
| USB Interface | Rear panel: 2 x USB2.0 | |||||
| RS485 | 1 | |||||
| Alarm In | 4-ch | |||||
| Alarm Out | 1-ch | |||||
| General | ||||||
| Power Supply | 12V DC Power Consumption: ≤ 10 W( without HDD ) | |||||
| Working Environment | -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing) | |||||
| Dimensions(W×D×H) | 260mm ×226mm× 47mm (10.2″ × 8.9″×1.8″) | |||||
| Weight ( without HDD ) | ≤1.1 Kg ( 2.42lb ) | |||||
| Certification | ||||||
| Certification | UL /CE /FCC /RoHS /WEEE | |||||
