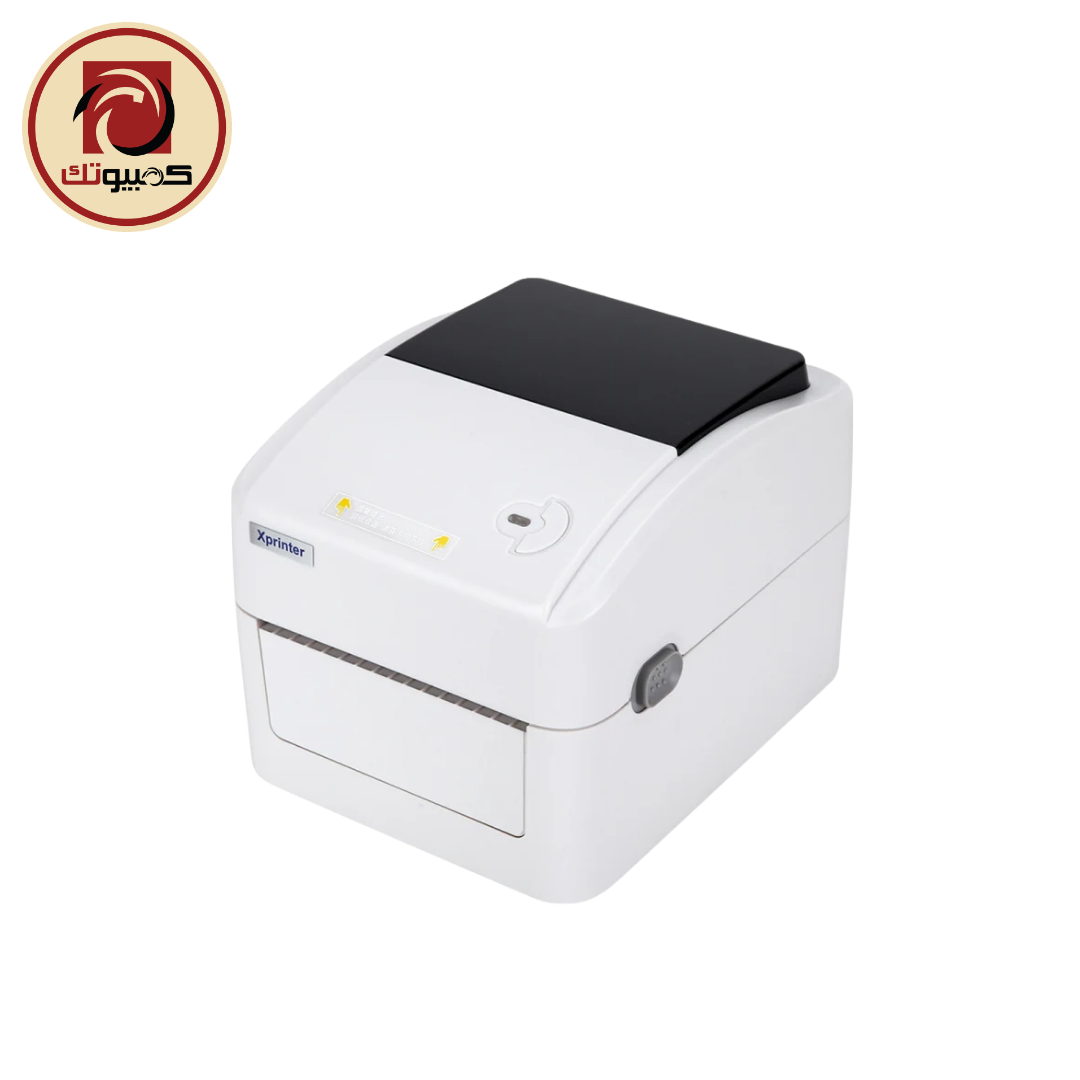

XPRINTER XP-420B 4-Inch Direct Thermal Barcode & Shipping Label Printer – 203 DPI, 152mm/s, USB
SKU:
2212703
- Type: Direct Thermal Barcode & Label Printer
- Brand: XPRINTER
- Model: XP-420B
- Print Resolution: 203 DPI
- Print Width: Up to 108mm (4.25″)
- Print Speed: Up to 152mm/s (6 ips)
- Connectivity: USB 2.0
- Memory: 8MB SDRAM + 8MB Flash
- Features: Supports 1D/2D Barcodes, TSPL/EPL/ZPL/DPL Emulation
- Warranty: 1 Year
4,299EGP
5 in stock
5 in stock
1
People watching this product now!
Description
The XPRINTER XP-420B is a high-performance 4-inch direct thermal label printer designed for shipping labels, barcode labels, warehouse management, e-commerce fulfillment, retail operations, and logistics applications. With a print speed of up to 152mm/s and support for multiple label formats, it delivers fast and reliable label printing without requiring ink, toner, or ribbons. Its compact design, large media capacity, and support for major printer languages make it suitable for businesses of all sizes.
Key Features
- 4-inch direct thermal barcode and shipping label printer
- 203 DPI print resolution for clear text and barcodes
- High-speed printing up to 152mm/s (6 ips)
- Maximum print width of 108mm (4.25″)
- Supports continuous, gap, black mark, fan-fold and punched labels
- 8MB Flash memory and 8MB SDRAM
- USB connectivity
- Supports TSPL, EPL, ZPL and DPL emulation
- Compatible with major shipping and barcode software platforms
- Supports 1D and 2D barcode printing including QR Codes
- Space-saving clamshell design with large media capacity
- No ink or ribbon required thanks to direct thermal technology
Technical Specifications
| Feature | Details |
|---|---|
| Product Name | XPRINTER XP-420B |
| Printer Type | Direct Thermal Label Printer |
| Printing Method | Direct Thermal |
| Resolution | 203 DPI (8 dots/mm) |
| Processor | 32-bit RISC CPU |
| Memory | 8MB SDRAM + 8MB Flash |
| Memory Expansion | Micro SD Card Support up to 4GB |
| Maximum Print Speed | 152 mm/s (6 ips) |
| Maximum Print Width | 108 mm (4.25″) |
| Maximum Print Length | 1778 mm |
| Interface | USB 2.0 |
| Media Types | Continuous, Gap, Black Mark, Fan-Fold, Punched Hole Labels |
| Media Width | 20 mm – 115 mm |
| Media Thickness | 0.06 mm – 0.25 mm |
| Paper Roll Diameter | 25.4 mm – 76.2 mm (1″ – 3″) |
| External Label Roll Capacity | 127 mm (5″) Diameter |
| Sensors | Gap Sensor, Black Mark Sensor, Head Open Sensor |
| Printer Languages | TSPL, EPL, ZPL, DPL |
| 1D Barcodes | Code39, Code128, Codabar, EAN-8, EAN-13, UPC-A, UPC-E, MSI, POSTNET, GS1 DataBar and more |
| 2D Barcodes | QR Code, PDF417, DataMatrix, Maxicode, Aztec |
| Power Supply | Input: AC 100-240V, Output: DC 24V / 2.5A |
| Dimensions | 215 × 178 × 155 mm |
| Weight | 1.31 kg |
| Operating Temperature | -10°C to 50°C |
| Certifications | CE, FCC, CCC, RoHS, CB |
| Warranty | 1 Year |
Specification
Connectivity
| Connectivity |
USB |
|---|
