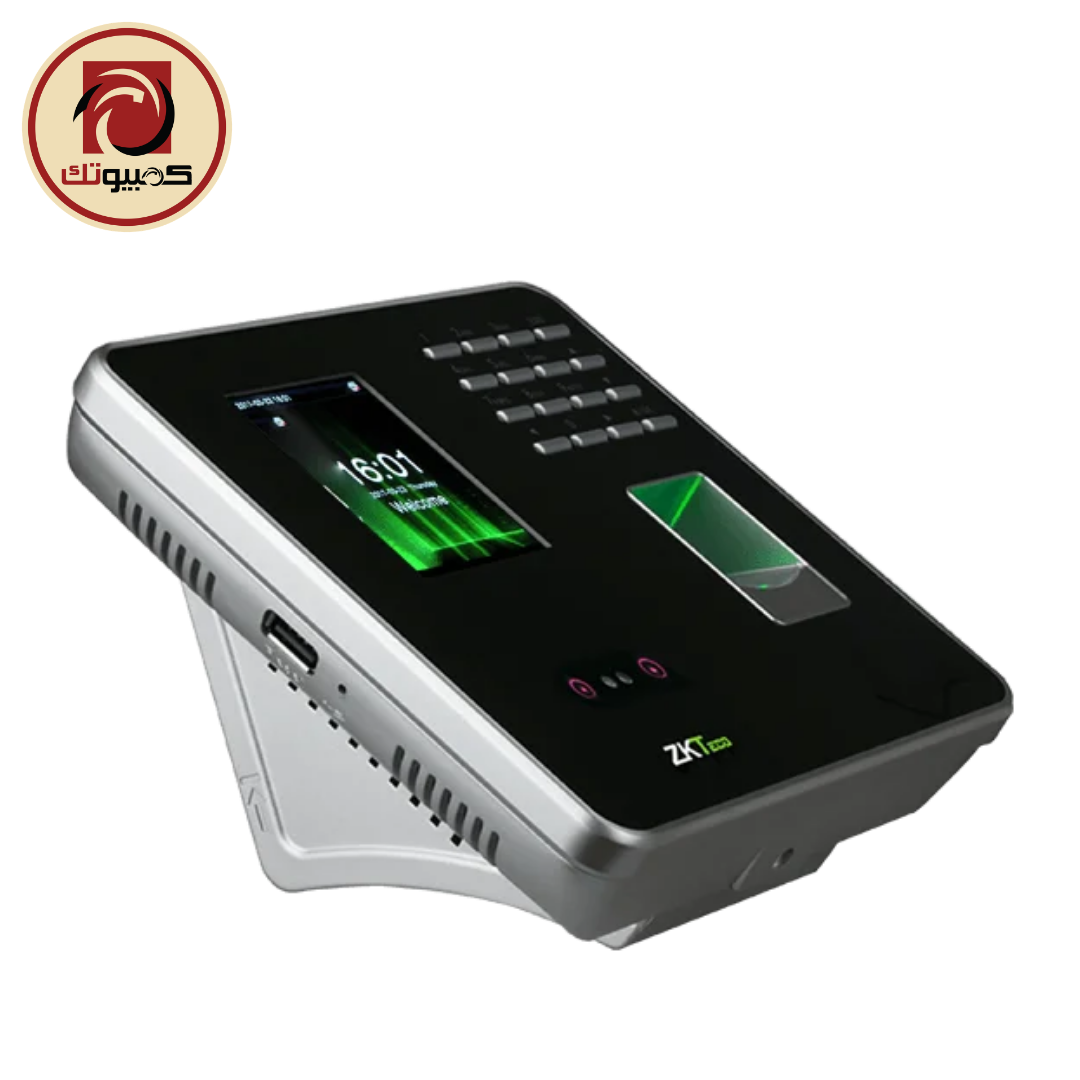

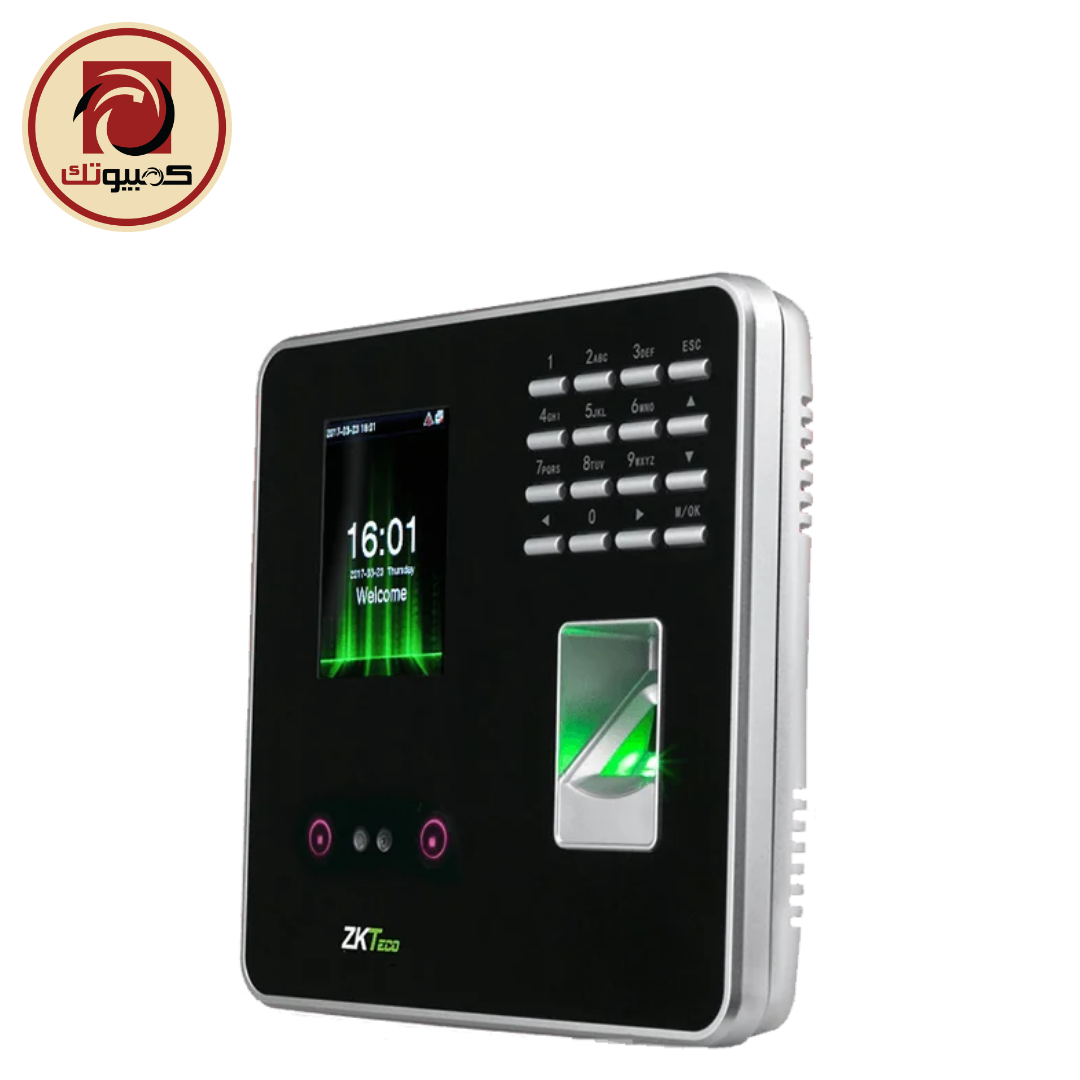

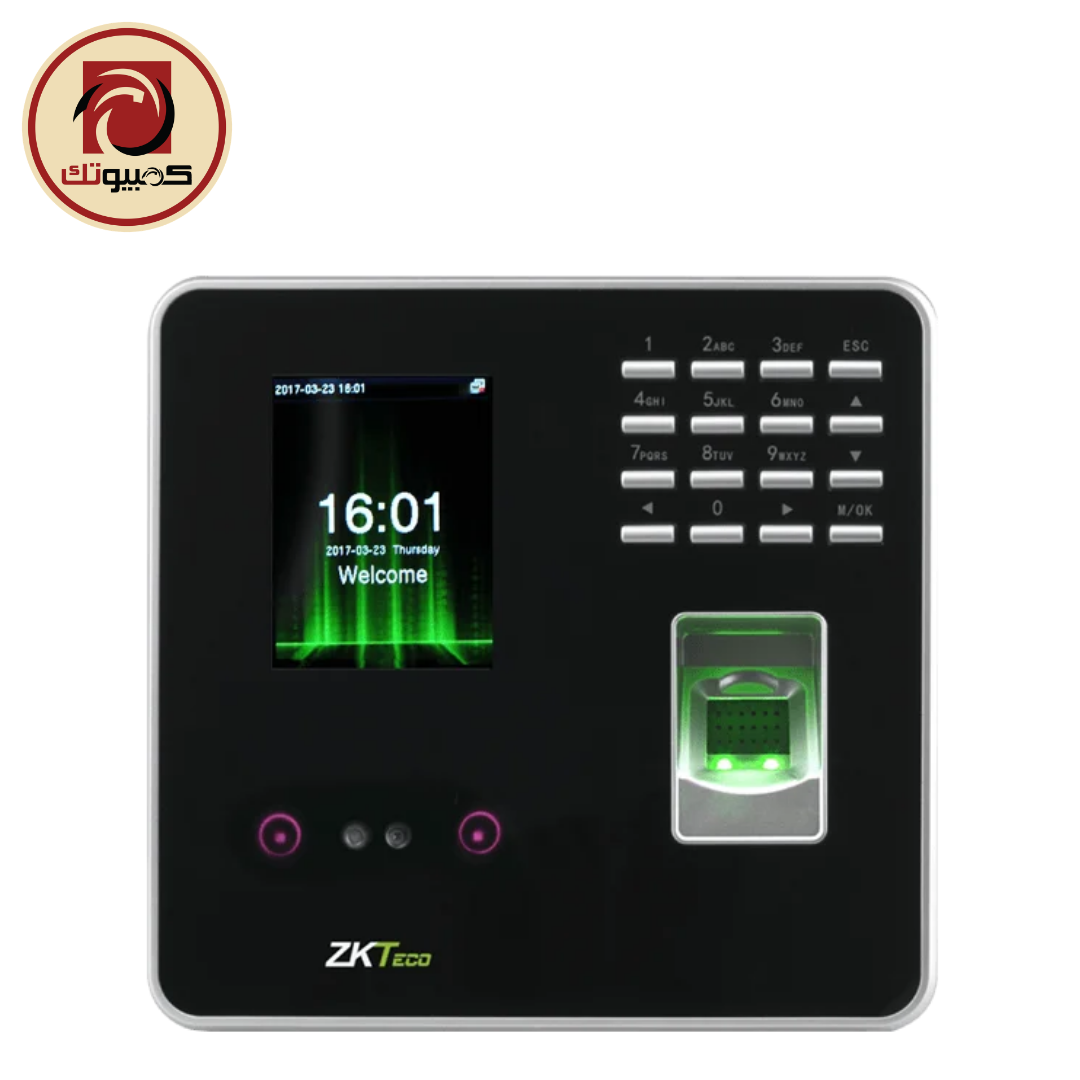

ZKTeco MB20 Multi-Biometric Time Attendance & Access Control Terminal – Face, Fingerprint, RFID & Password
- Product Type: Multi-Biometric Time Attendance & Access Control Terminal
- Brand: ZKTeco
- Model: MB20
- Verification Methods: Fingerprint, Face, RFID/Card & Password
- User Capacity: Up to 1,000 Users
- Fingerprint Capacity: Up to 500
- Face Capacity: Up to 200
- Card Capacity: Up to 1,000
- Transaction Capacity: Up to 50,000 Records
- Display: 2.8″ Color LCD
- Communication: TCP/IP & USB Host
- Access Control: 1 Relay for Electric Lock & Exit Button
- Identification Speed: Less Than 1 Second
- Optional UPS: 5V 1900mAh, Up to 3 Hours Standby
- Software Compatibility: ZKBio Time.Net, ZKBio Time, ZKBio CVAccess & Zlink Assistant
- Warranty: 1 Year
4,200EGP
2 in stock
2 in stock
Description
The ZKTeco MB20 is a multi-biometric time attendance and access control terminal designed for offices, companies, schools, factories, and other organizations. It supports multiple verification methods including fingerprint, face recognition, RFID/card, and password, providing flexible employee attendance and access management.
The MB20 supports up to 1,000 users, with capacity for up to 500 fingerprints, 200 faces, 1,000 cards, and 50,000 attendance records. Identification is performed in less than one second, making it suitable for environments with frequent employee check-ins and check-outs.
For connectivity, the terminal provides 10/100Mbps TCP/IP networking and a USB 2.0 Host port for data transfer. It also includes an access-control relay for controlling one electric lock and an interface for an exit button.
An optional 5V 1900mAh UPS is available, providing up to three hours of standby operation during power interruptions. The device features a 2.8-inch color LCD and stereo speaker for convenient operation and status feedback.
Key Features
- 4 verification methods: fingerprint, face, RFID/card and password
- Fast identification in less than 1 second
- Up to 1,000 users
- Up to 500 fingerprints
- Up to 200 face templates
- Up to 1,000 cards
- Up to 50,000 attendance records
- 2.8-inch color LCD display
- 10/100Mbps TCP/IP connectivity
- USB 2.0 Host for data transfer
- Built-in relay for one electric lock
- Exit button interface
- Optional 5V 1900mAh backup UPS
- Compatible with ZKTeco attendance and access-control software
Technical Specifications
| Feature | Details |
|---|---|
| Product Name | ZKTeco MB20 |
| Brand | ZKTeco |
| Model | MB20 |
| Product Type | Multi-Biometric Time Attendance & Access Control Terminal |
| Biometric Methods | Fingerprint & Face Recognition |
| Verification Methods | Fingerprint, Face, RFID/Card & Password |
| User Capacity | 1,000 Users |
| Fingerprint Capacity | 500 (Optional: Up to 2,000) |
| Face Capacity | 200 (Optional: Up to 500) |
| Card Capacity | 1,000 |
| Card Type | 125kHz ID / 13.56MHz IC, Optional |
| Transaction Capacity | 50,000 Records |
| Identification Speed | Less Than 1 Second |
| Display | 2.8″ Color LCD |
| Speaker | Stereo Speaker |
| Network | TCP/IP 10/100Mbps |
| USB | USB 2.0 Host |
| Relay | 1 Relay |
| Access Control | 1 Electric Lock + Exit Button |
| Backup UPS | Optional 5V 1900mAh, Up to 3 Hours Standby |
| Standard Functions | Automatic Status Switch, Self-Service Query, DST, T9 Input, 9-Digit User ID, Scheduled Bell, Photo ID, Sensor & Exit Button |
| Optional Functions | ID / IC Card, ADMS, HTTPS |
| Software Compatibility | ZKBio Time.Net, ZKBio Time, ZKBio CVAccess (T&A Module), Zlink Assistant |
| Operating Temperature | 0°C – 45°C |
| Operating Humidity | 20% – 80% |
| Power Supply | DC 5V / 0.8A |
| Dimensions | 161.93 × 152.82 × 30.59 mm |
| Warranty | 1 Year |
