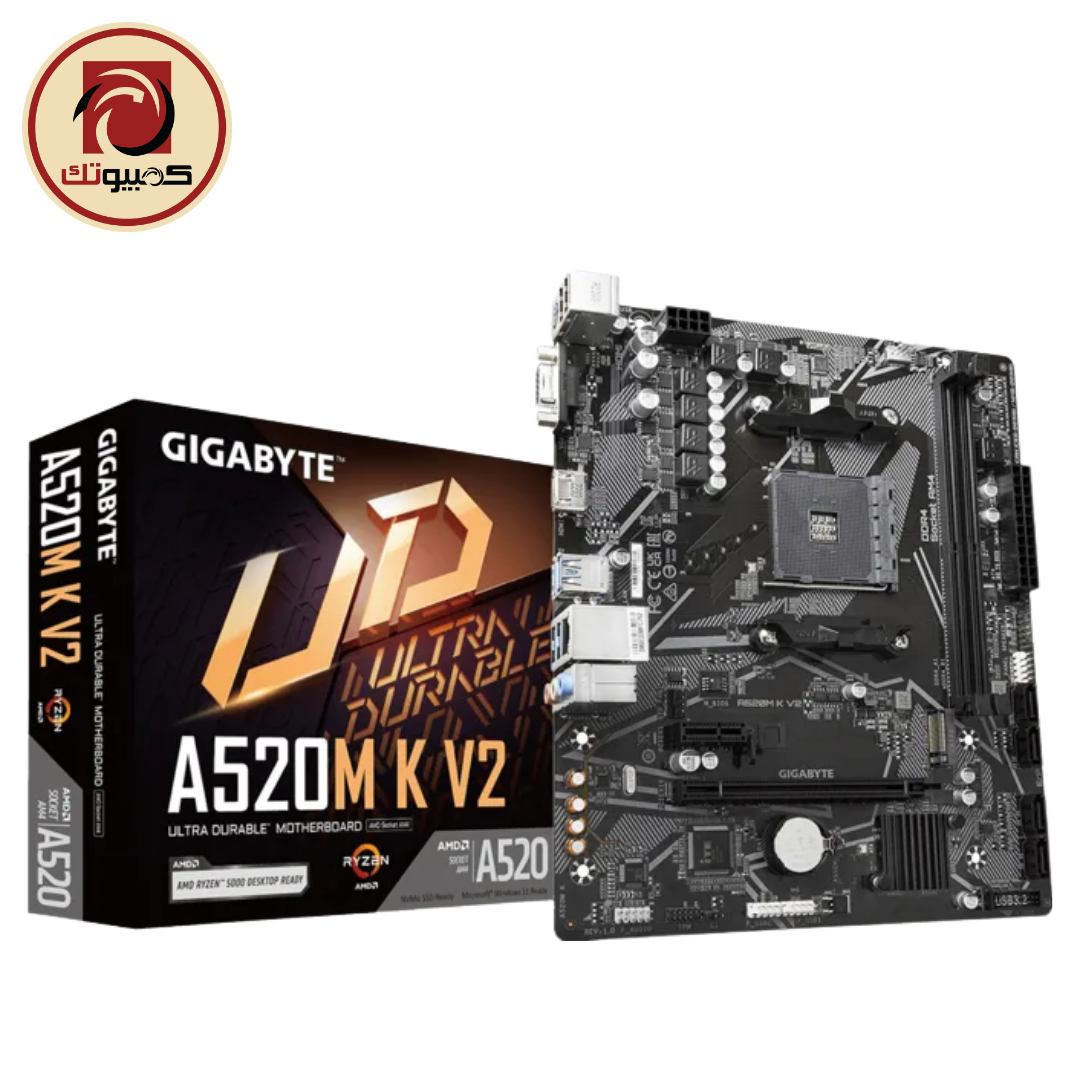

GIGABYTE A520M K V2 (Rev. 1.1) AMD AM4 Micro-ATX Motherboard

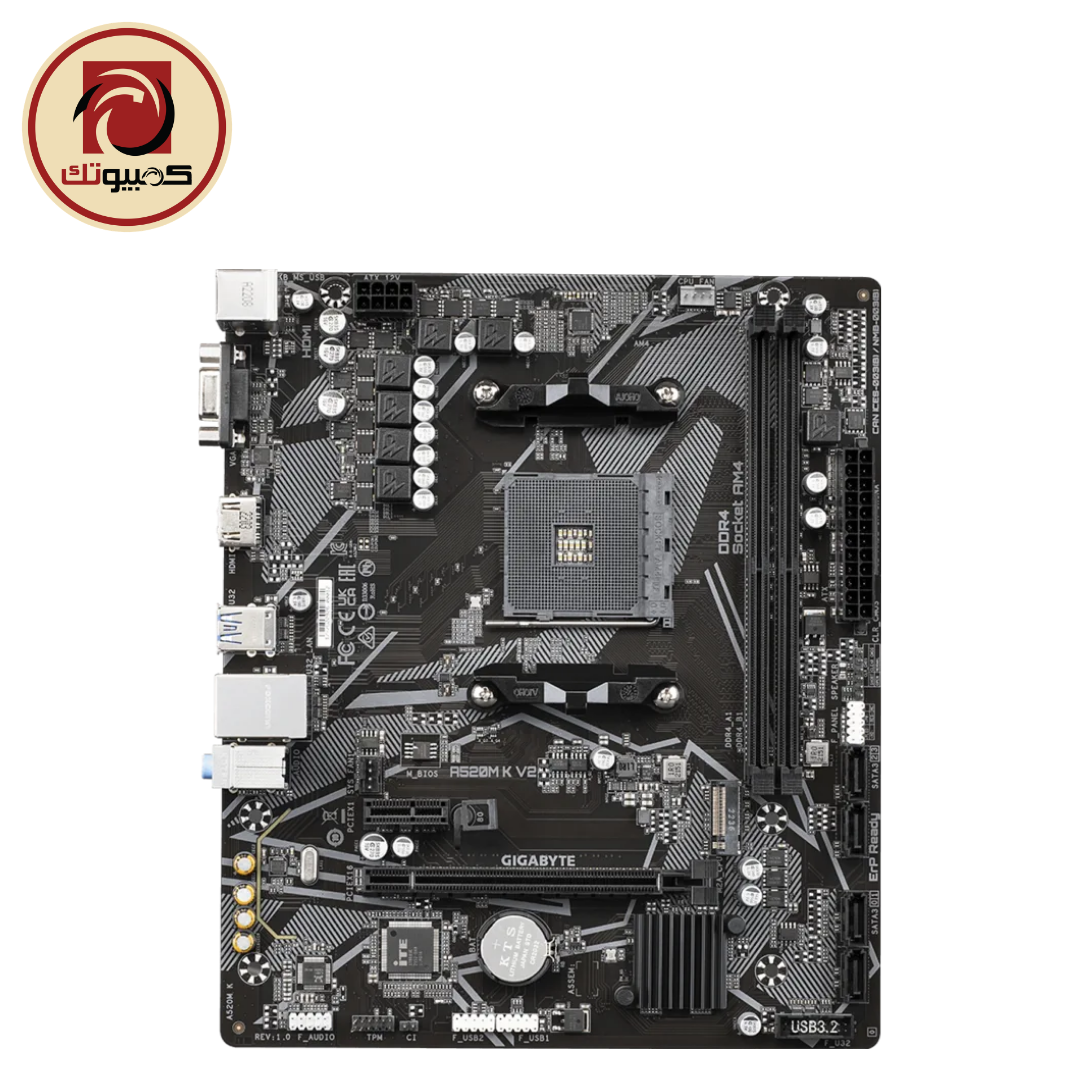

The GIGABYTE A520M K V2 (Rev. 1.1) is a compact Micro-ATX motherboard built around the AMD A520 chipset and AMD AM4 socket. It supports a wide range of AMD Ryzen processors, including Ryzen 3000, Ryzen 3000 G-Series, Ryzen 4000 G-Series, and Ryzen 5000 Series processors.

The motherboard features two DDR4 DIMM slots supporting up to 64GB of system memory. It supports memory speeds up to 5100MHz through overclocking, along with standard DDR4 speeds including 3200MHz, 2933MHz, 2667MHz, 2400MHz, and 2133MHz. Dual-channel memory architecture and XMP support are also available.

For graphics and expansion, the A520M K V2 provides one PCI Express 3.0 x16 slot for a dedicated graphics card and one PCI Express 3.0 x1 slot for additional expansion cards.

Storage connectivity includes one M.2 Socket 3 connector supporting M.2 2280 SATA and PCIe 3.0 x4/x2 NVMe SSDs, along with four SATA 6Gb/s ports. The motherboard also supports RAID 0, RAID 1, and RAID 10 configurations.

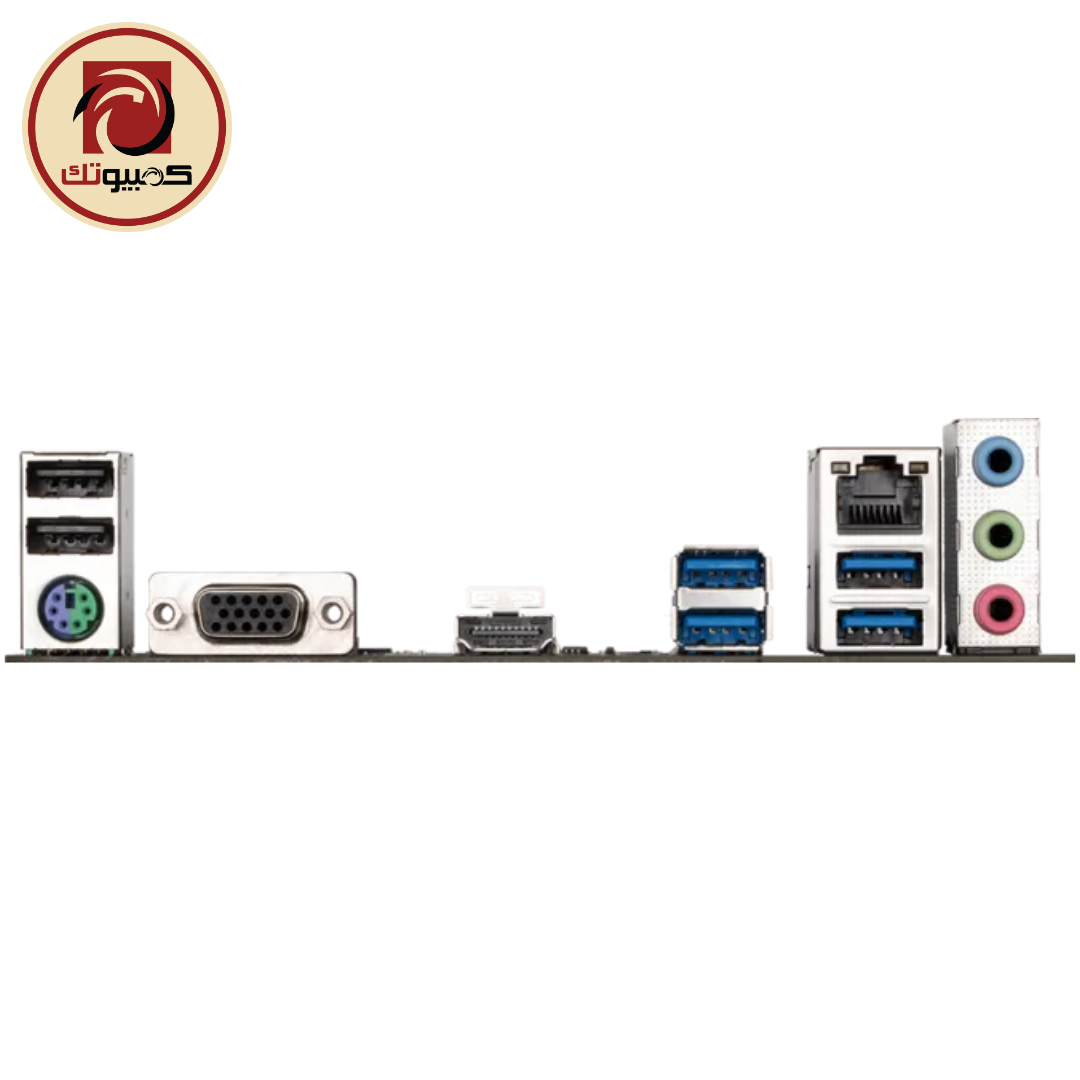

The integrated display outputs include HDMI and D-Sub, allowing compatible AMD processors with integrated Radeon Graphics to drive displays without a dedicated graphics card. HDMI supports resolutions up to 4096 × 2160 at 60Hz, while D-Sub supports up to 1920 × 1200 at 60Hz.

For networking, the motherboard uses a Realtek Gigabit Ethernet controller. Audio is handled by a Realtek HD Audio codec supporting up to 7.1-channel audio.

The A520M K V2 also features GIGABYTE Smart Fan 5, providing temperature monitoring and fan-speed control through compatible fan headers. Q-Flash support makes BIOS updating easier.

Key Features

• AMD A520 chipset
• AMD AM4 socket
• Supports Ryzen 5000, 4000 G-Series, and 3000 Series processors
• 2 × DDR4 DIMM slots
• Up to 64GB total memory capacity
• DDR4 up to 5100MHz (O.C.)
• Dual-channel memory architecture
• XMP memory support
• 1 × PCIe 3.0 x16 slot
• 1 × PCIe 3.0 x1 slot
• 1 × M.2 2280 PCIe 3.0 x4/x2/SATA slot
• 4 × SATA 6Gb/s connectors
• RAID 0, RAID 1, and RAID 10 support
• Realtek Gigabit LAN
• Realtek HD Audio with up to 7.1-channel support
• HDMI and D-Sub display outputs
• GIGABYTE Smart Fan 5
• Q-Flash BIOS update support
• Micro-ATX form factor
