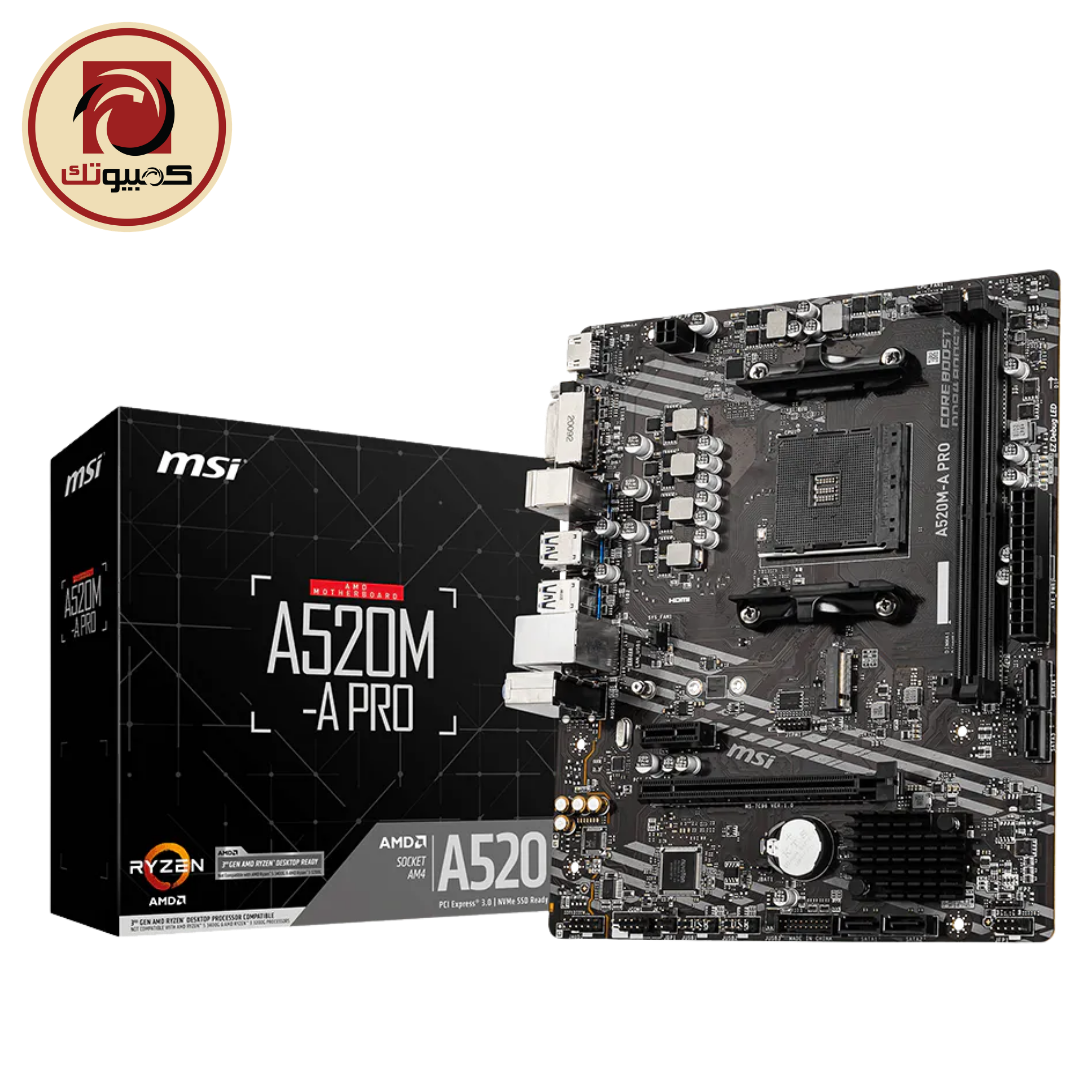

MSI A520M-A PRO AMD AM4 Micro-ATX Motherboard
- AMD A520 Chipset
- AM4 Socket
- Supports Ryzen 3000, 4000 G-Series, and 5000 Series
- 2 × DDR4 DIMM Slots up to 64GB
- DDR4 up to 4600MHz (O.C.)
- 1 × PCIe 3.0 x16 Slot
- 1 × PCIe 3.0 x1 Slot
- 1 × M.2 PCIe Gen3 x4 Slot
- 4 × SATA 6Gb/s Ports
- Realtek RTL8111H Gigabit LAN
- HDMI + DVI-D Display Outputs
- Micro-ATX Form Factor
- Warranty: 3 Year
3,299EGP
2 in stock
2 in stock
Description

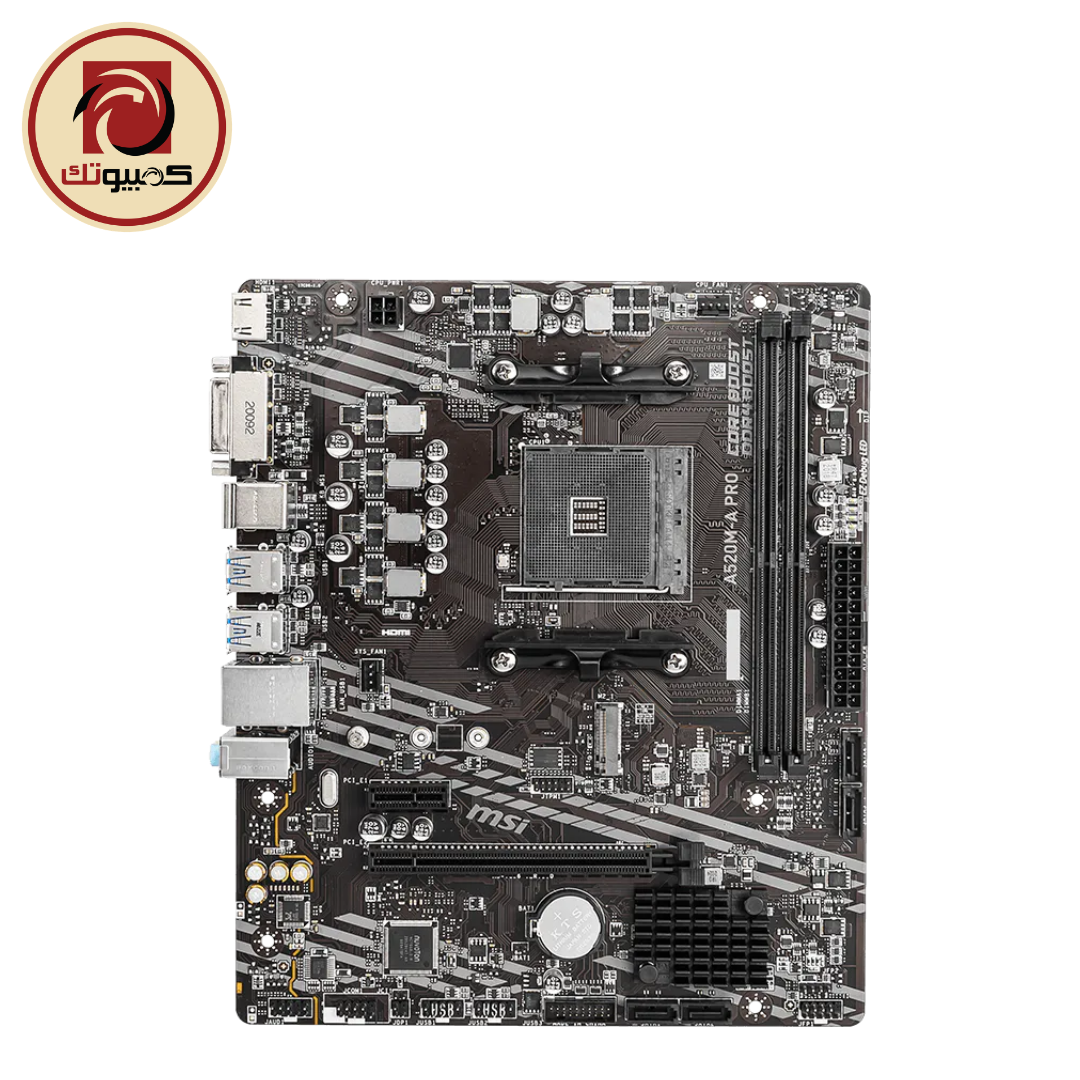

The MSI A520M-A PRO is a Micro-ATX motherboard built around the AMD A520 chipset and AM4 socket. It supports AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, and 3000 G-Series processors, making it a practical platform for mainstream desktop and gaming systems.
The motherboard features two DDR4 DIMM slots supporting up to 64GB of system memory. DDR4 speeds reach up to 4600MHz through A-XMP overclocking, while dual-channel memory architecture helps improve overall memory performance and responsiveness.
For graphics and expansion, the A520M-A PRO provides one PCIe 3.0 x16 slot for a dedicated graphics card and one PCIe 3.0 x1 slot for additional expansion cards.
Storage options include one M.2 Key M slot supporting PCIe Gen3 x4 NVMe SSDs and SATA 6Gb/s devices, along with four SATA 6Gb/s ports. RAID 0, RAID 1, and RAID 10 are supported for SATA storage.
For systems using a processor with integrated graphics, the motherboard provides HDMI 2.1 and DVI-D display outputs. HDMI supports resolutions up to 4096 × 2160 at 60Hz, while DVI-D supports up to 1920 × 1200 at 60Hz.
Networking is handled by the Realtek RTL8111H Gigabit LAN controller. For audio, the motherboard uses a Realtek ALC892/ALC897 codec with 7.1-channel High Definition Audio and MSI Audio Boost technology.
The A520M-A PRO also features MSI technologies including Core Boost, DDR4 Boost, and a 2oz thickened copper PCB, designed to provide stable power delivery, improved memory signal quality, and better thermal performance.
Key Features
- AMD A520 chipset
- AMD AM4 socket
- Supports Ryzen 5000, 5000 G-Series, 4000 G-Series, 3000, and 3000 G-Series processors
- 2 × DDR4 DIMM slots
- Up to 64GB memory capacity
- DDR4 up to 4600MHz (O.C.)
- Dual-channel memory architecture
- A-XMP support
- 1 × PCIe 3.0 x16 slot
- 1 × PCIe 3.0 x1 slot
- 1 × M.2 Gen3 x4 slot
- 4 × SATA 6Gb/s ports
- RAID 0 / 1 / 10 support
- Realtek RTL8111H Gigabit LAN
- Realtek 7.1-channel HD Audio
- HDMI 2.1 and DVI-D display outputs
- MSI Core Boost technology
- MSI DDR4 Boost technology
- 2oz thickened copper PCB
- Micro-ATX form factor
Technical Specifications
| Feature | Details |
|---|---|
| Product Name | MSI A520M-A PRO Motherboard |
| Brand | MSI |
| Model | A520M-A PRO |
| Chipset | AMD A520 |
| CPU Socket | AMD AM4 |
| CPU Support | AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series |
| Memory Type | DDR4 |
| Memory Slots | 2 × DDR4 DIMM |
| Maximum Memory | 64GB |
| Memory Speed | DDR4 up to 4600MHz (O.C.) |
| Memory Architecture | Dual Channel |
| Memory Support | Non-ECC UDIMM / ECC UDIMM in Non-ECC Mode / Unbuffered |
| A-XMP | Supported |
| PCIe x16 Slot | 1 × PCIe 3.0 x16 |
| PCIe x1 Slot | 1 × PCIe 3.0 x1 |
| M.2 Slots | 1 × M.2 Key M |
| M.2 Interface | PCIe 3.0 x4 + SATA 6Gb/s |
| M.2 Form Factors | 2242 / 2260 / 2280 |
| SATA Ports | 4 × SATA 6Gb/s |
| RAID Support | RAID 0 / RAID 1 / RAID 10 |
| LAN | Realtek RTL8111H Gigabit LAN |
| Audio Codec | Realtek ALC892/ALC897 |
| Audio | 7.1-Channel High Definition Audio |
| Display Outputs | 1 × HDMI 2.1 + 1 × DVI-D |
| HDMI Resolution | Up to 4096 × 2160 @ 60Hz |
| DVI-D Resolution | Up to 1920 × 1200 @ 60Hz |

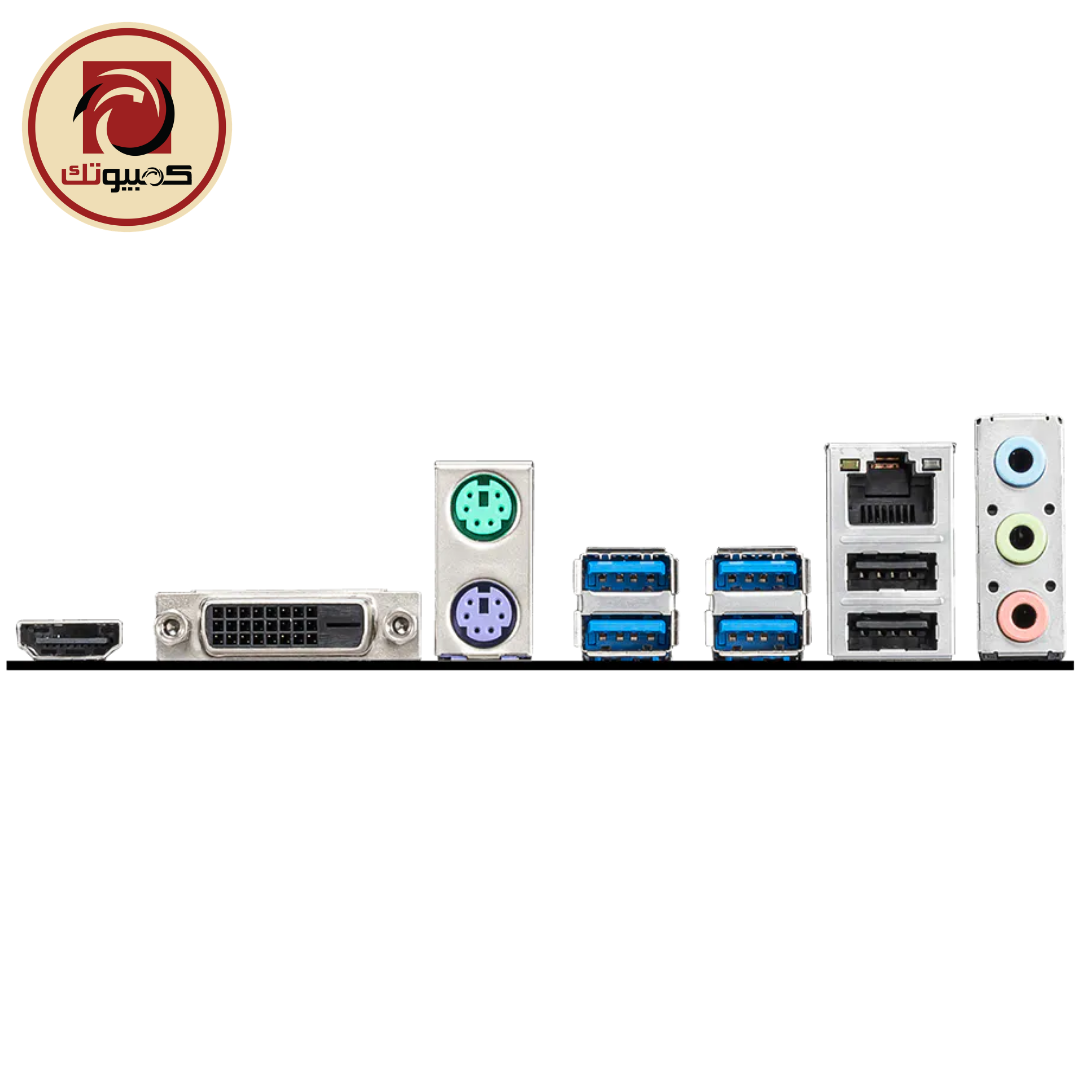

| Rear USB | 4 × USB 3.2 Gen 1 Type-A + 2 × USB 2.0 Type-A |
| Internal USB | 1 × USB 3.2 Gen 1 Header + 2 × USB 2.0 Headers |
| Fan Headers | 1 × CPU Fan + 1 × System Fan |
| Power Connectors | 1 × 24-Pin ATX + 1 × 4-Pin ATX 12V |
| Form Factor | Micro-ATX |
| Dimensions | 23.6 × 20 cm |
| Operating System | Windows 10 64-bit |
| Warranty | 1 Year |
