Hikvision DS-1LN6UU/CCA CAT6 UTP Network Cable 305M Roll – 23AWG Copper Clad Aluminum (CCA)
- Product Type: CAT6 UTP Network Cable
- Brand: Hikvision
- Model: DS-1LN6UU/CCA
- Category: CAT6 U/UTP
- Conductor: 23AWG Copper Clad Aluminum (CCA)
- Cable Length: 305 Meters
- Bandwidth: Up to 250 MHz
- PVC Jacket with Rip Cord
- Ideal for CCTV & Structured Cabling
2,999EGP
2 in stock
2 in stock
11
People watching this product now!
Description
The Hikvision DS-1LN6UU/CCA is a CAT6 UTP network cable designed for CCTV systems, structured cabling, and Gigabit Ethernet installations. It features 23AWG Copper Clad Aluminum (CCA) conductors and is supplied in a 305-meter pull box for professional installations.
Supporting bandwidths up to 250MHz, the cable is built with HDPE insulation, a durable PVC jacket, an internal separator, and a rip cord for easier installation while helping reduce crosstalk and maintain stable network performance.
Key Features
- CAT6 U/UTP network cable

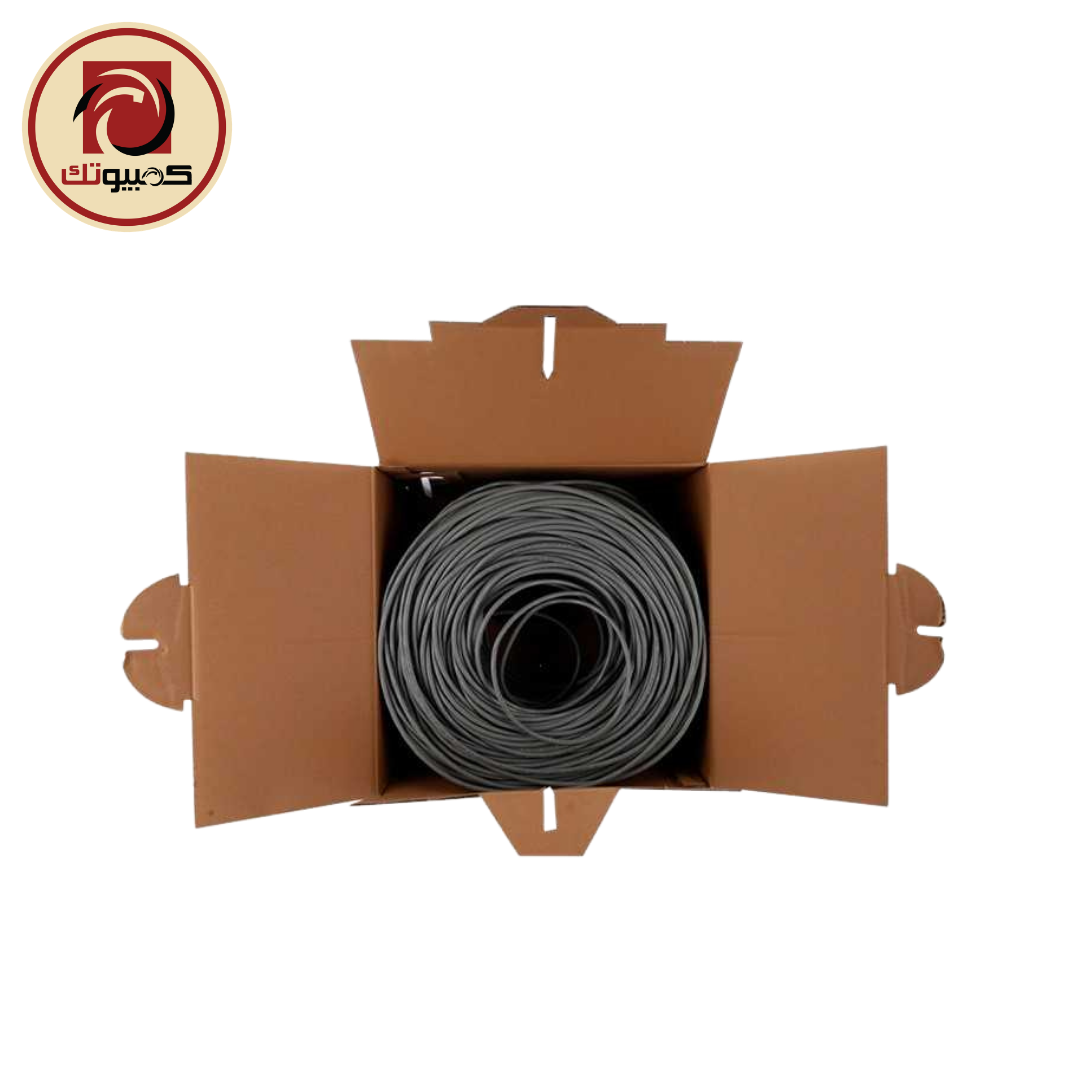

- 305-meter easy-pull box
- 23AWG Copper Clad Aluminum (CCA) conductors
- Supports Gigabit Ethernet applications
- 250MHz bandwidth
- PVC outer jacket

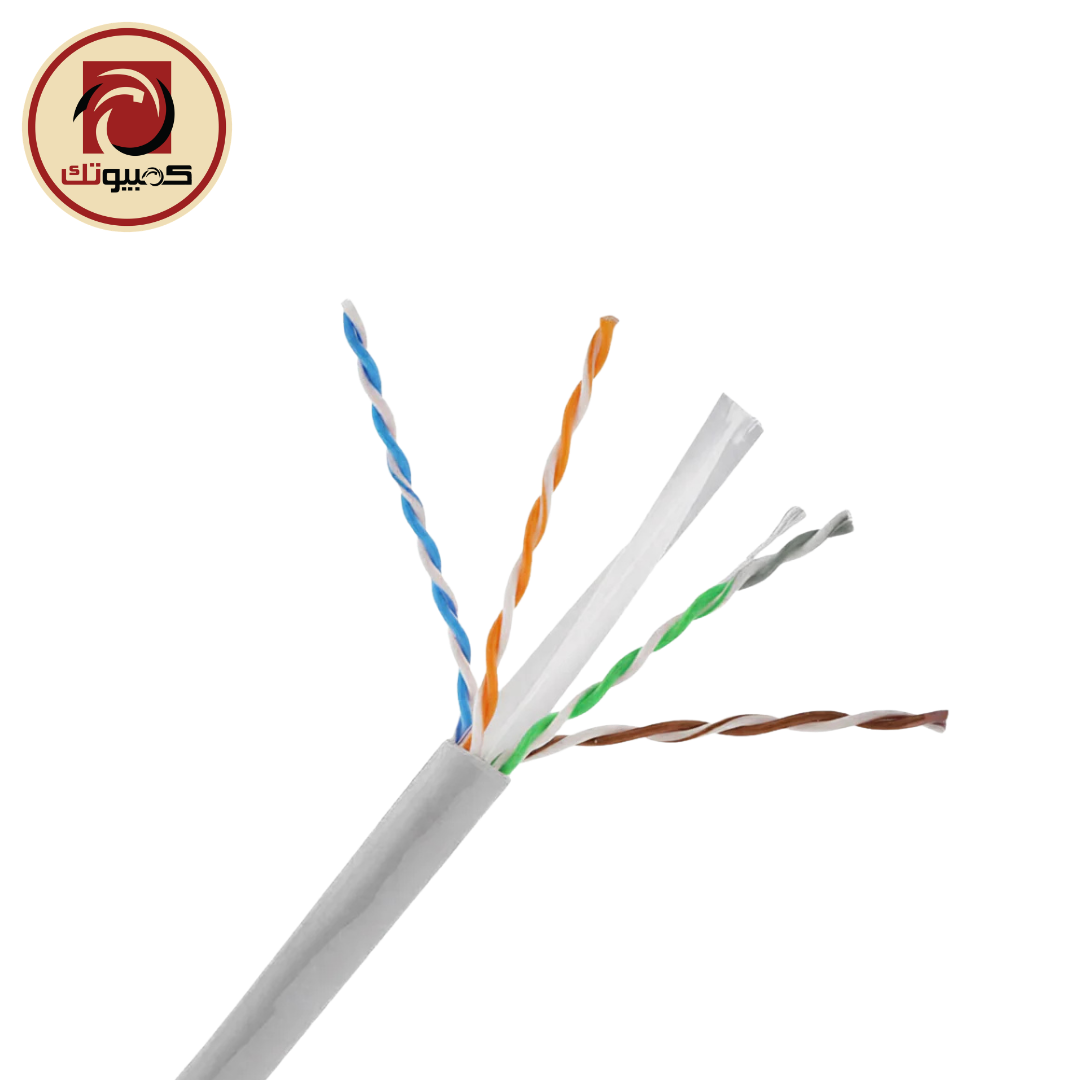

- Internal separator reduces crosstalk
- Rip cord for easier cable stripping
- Ideal for CCTV, LAN, and structured cabling
Technical Specifications
| Feature | Details |
|---|---|
| Product Name | Hikvision DS-1LN6UU/CCA CAT6 UTP Network Cable |
| Brand | Hikvision |
| Model | DS-1LN6UU/CCA |
| Product Type | CAT6 UTP Network Cable |
| Cable Category | CAT6 U/UTP |
| Conductor | 23AWG Copper Clad Aluminum (CCA) |
| Conductor Diameter | 0.57 ± 0.01 mm |
| Cable Length | 305 Meters |
| Bandwidth | 250 MHz |
| Insulation Material | HDPE |
| Jacket Material | PVC |
| Outer Diameter | 6.4 ± 0.5 mm |
| Separator | Yes |
| Rip Cord | Yes |
| Cable Color | Gray |
| Reference Standards | ANSI/TIA-568.2-D, RoHS 2.0, CPR Eca |
| Operating Voltage | 57 V |
