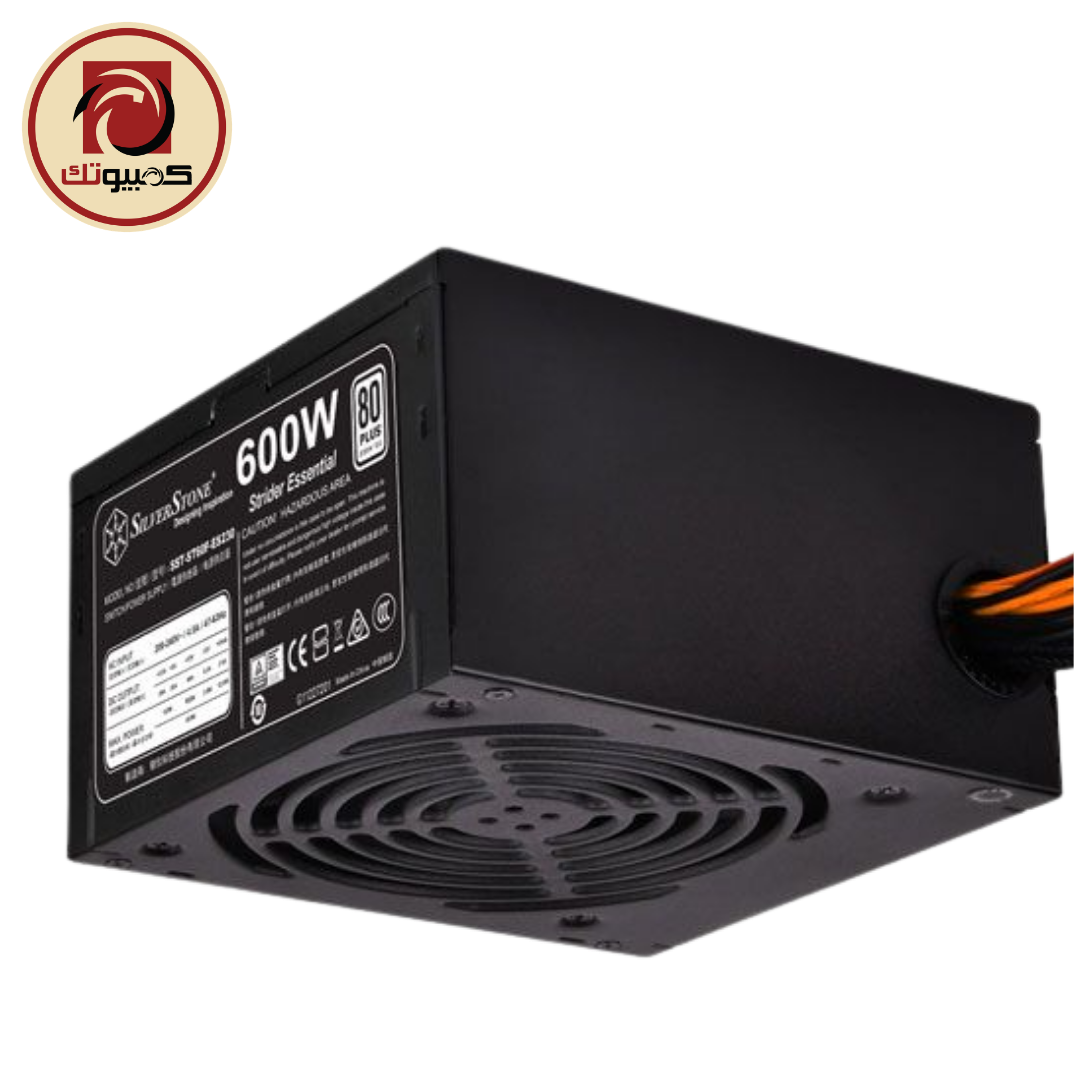

SilverStone ST60F-ES230 600W 80 PLUS ATX Power Supply Tray - Image 1

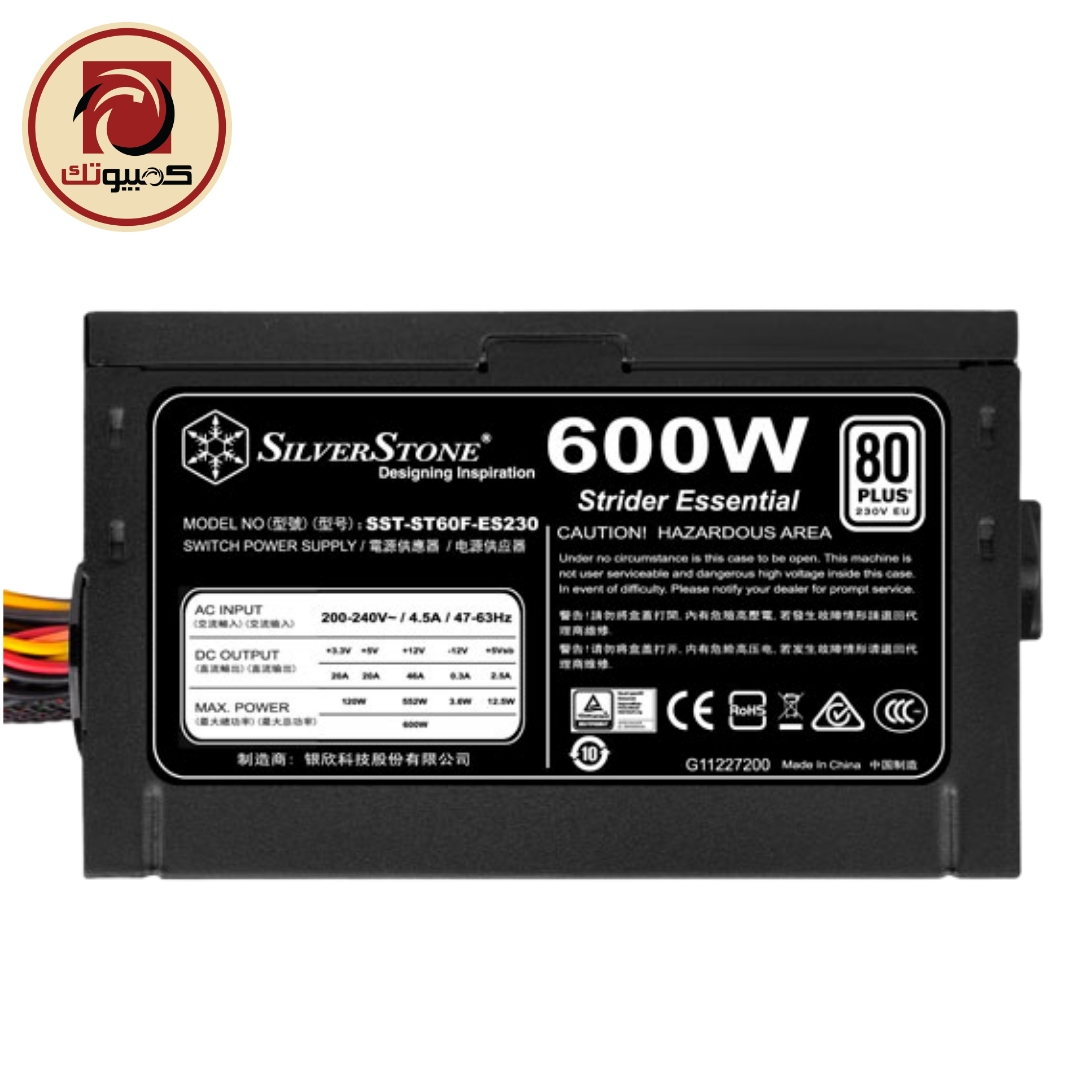

SilverStone ST60F-ES230 600W 80 PLUS ATX Power Supply Tray - Image 2

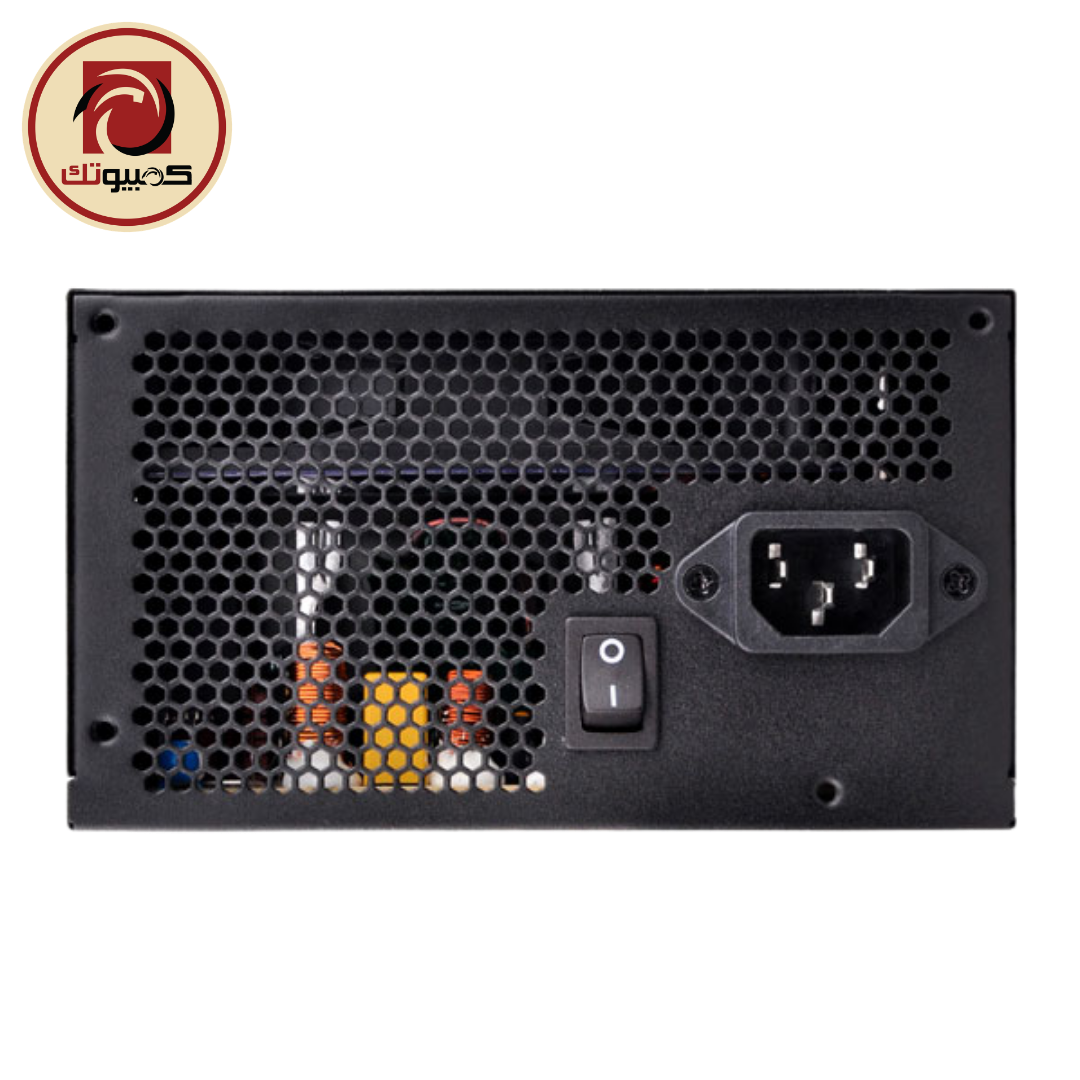

SilverStone ST60F-ES230 600W 80 PLUS ATX Power Supply Tray - Image 3

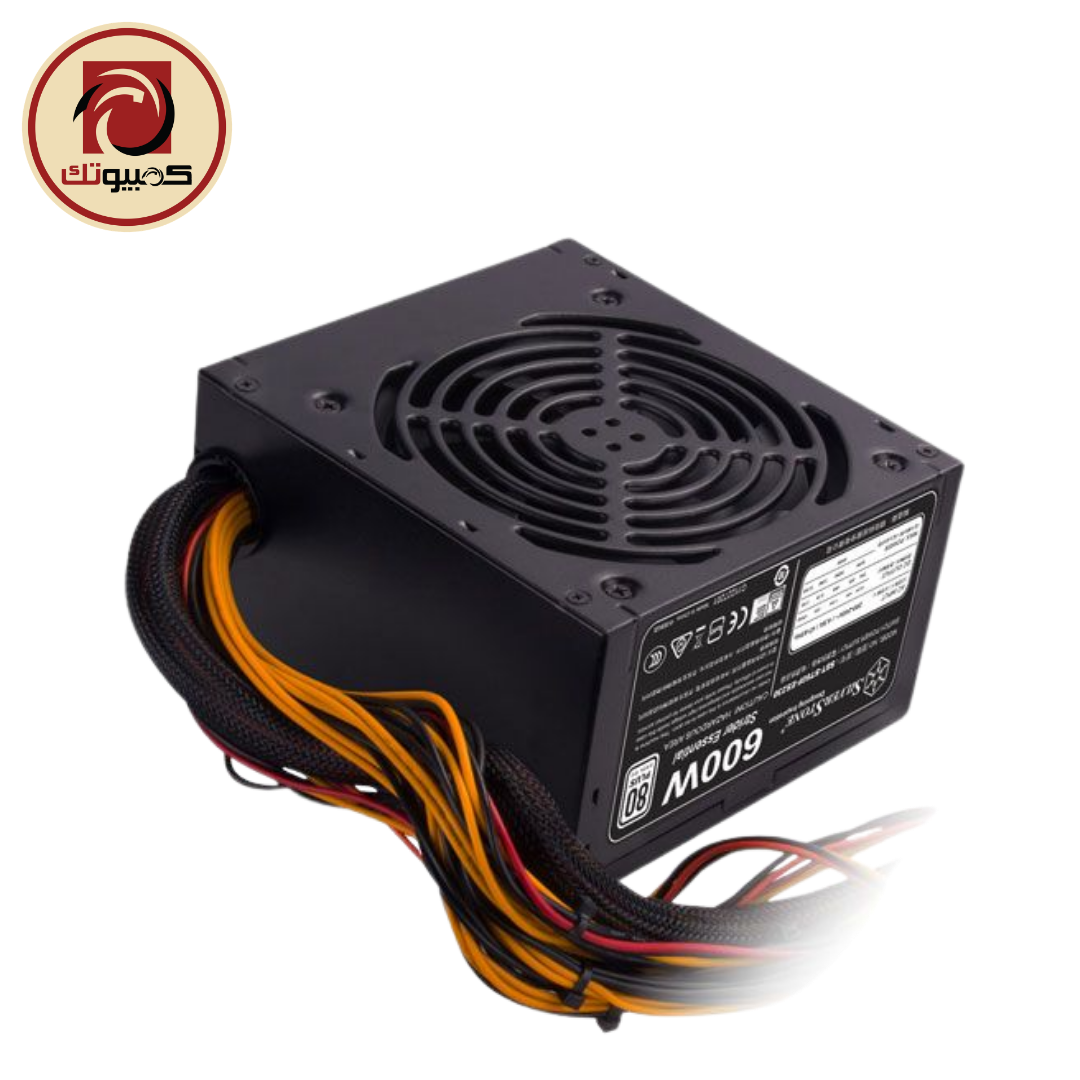

SilverStone ST60F-ES230 600W 80 PLUS ATX Power Supply Tray - Image 4
Click to enlarge
SilverStone ST60F-ES230 600W 80 PLUS ATX Power Supply Tray
SilverStone ST60F-ES230 600W 80 PLUS ATX Power Supply Tray - Image 2
SilverStone ST60F-ES230 600W 80 PLUS ATX Power Supply Tray - Image 3
SilverStone ST60F-ES230 600W 80 PLUS ATX Power Supply Tray - Image 4
Brand: SilverStone

SilverStone ST60F-ES230 600W 80 PLUS ATX Power Supply Tray

SKU: 6509683
  • 600W ATX Power Supply
  • 80 PLUS 230V EU Efficiency
  • Single +12V Rail – 46A
  • Active PFC
  • 120mm Silent Fan – 18dBA
  • PCIe 6+2-Pin Connectors
  • Non-Modular Design

2,299EGP

1 in stock

1 in stock

Add to compare
Add to wishlist
15 People watching this product now!

Description

The SilverStone ST60F-ES230 600W ATX Power Supply is a reliable desktop PC power supply designed to deliver stable power for everyday and performance-oriented systems. It features a single +12V rail rated at 46A, providing up to 552W on the +12V rail.

The ST60F-ES230 features Active PFC, 80 PLUS 230V EU efficiency, and a 120mm low-noise fan rated at 18dBA. Its non-modular flat black cables provide flexible cable management, while built-in protection features help safeguard connected PC components.

SpecificationDetails
BrandSilverStone
ModelST60F-ES230
Product TypeATX Power Supply
SeriesStrider Essential
Maximum Power Output600W
Form FactorATX / PS2
80 PLUS Certification80 PLUS 230V EU
ModularNon-Modular
+12V RailSingle Rail
+12V Output46A / 552W
+5V Output20A
+3.3V Output20A
-12V Output0.3A
+5VSB Output2.5A
+3.3V + +5V Combined Power120W
Input Voltage180–264V AC
Input Frequency47–63Hz
Input Current4.5A Maximum
PFCActive PFC
Power FactorPF > 0.9 at Full Load
Efficiency82%–85%
Cooling Fan120mm Fan
Fan Noise18dBA Minimum
Operating Temperature0–40°C
MTBF100,000 Hours
ProtectionOver Power Protection, Over Voltage Protection & Short Circuit Protection
Motherboard Connector1 × 24/20-Pin ATX
CPU Power Connector1 × 8/4-Pin EPS / ATX 12V
PCIe Connectors2 × 8/6-Pin PCIe
SATA Connectors4 × SATA
Peripheral Connectors3 × 4-Pin Peripheral
Floppy Connector1 × 4-Pin Floppy
Cable TypeFlat Black Cables
Dimensions150 × 86 × 140mm
Weight1.41kg
ColorBlack
WarrantyNot Specified
