Hikvision DS-1LN6-UU CAT6 UTP Network Cable 305M Roll – Solid Bare Copper 23AWG
- Product Type: CAT6 UTP Network Cable
- Brand: Hikvision
- Model: DS-1LN6-UU
- Category: CAT6 U/UTP
- Conductor: 23AWG Solid Bare Copper (99.95%)
- Cable Length: 305 Meters
- Bandwidth: Up to 250 MHz
- Fluke Tested
- CM PVC Jacket
7,899EGP
1 in stock
1 in stock
10
People watching this product now!
Description

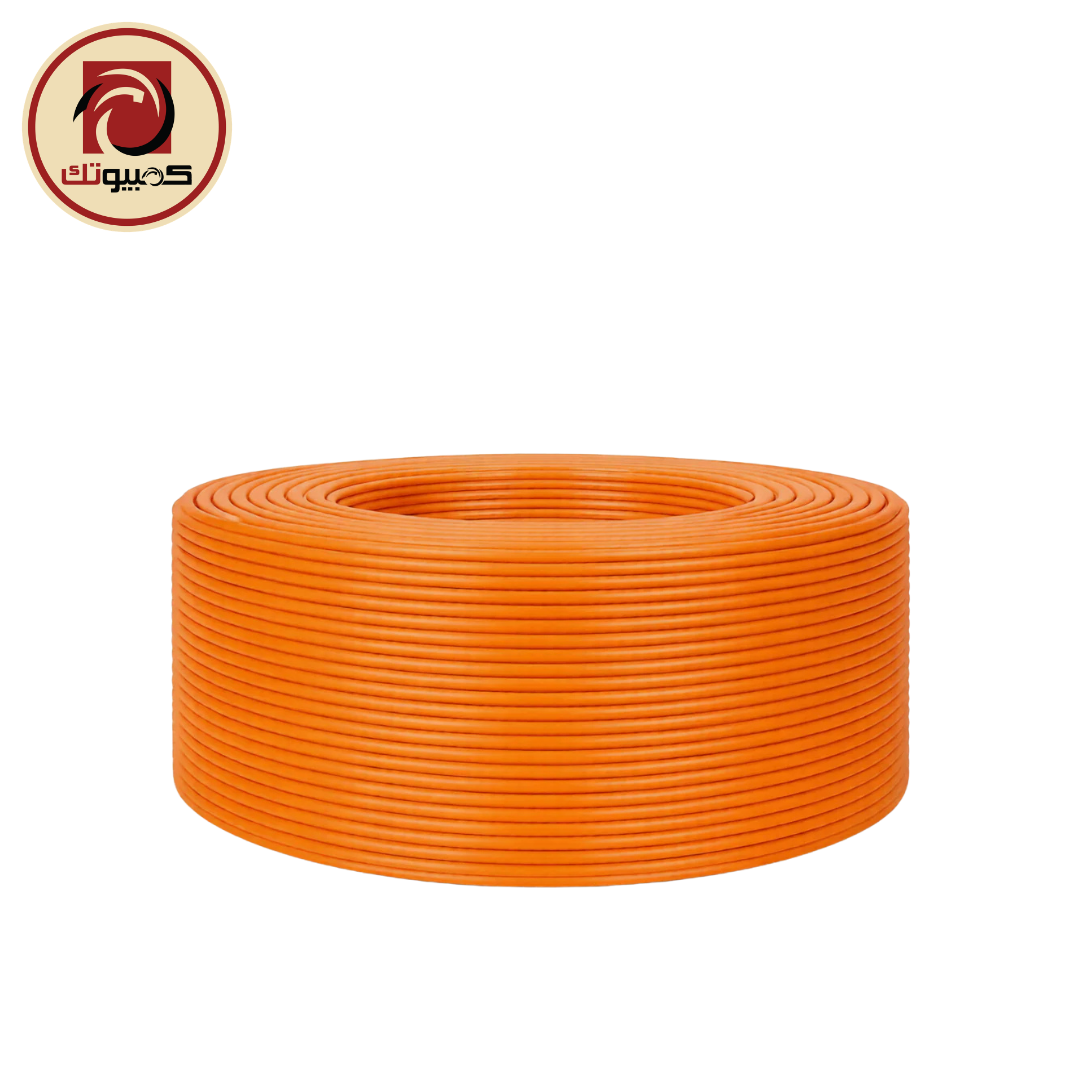

The Hikvision DS-1LN6-UU is a professional CAT6 UTP network cable designed for structured cabling, surveillance systems, and Gigabit Ethernet installations. Built with 99.95% solid bare copper 23AWG conductors, it provides stable data transmission and excellent PoE performance.
Supplied in a 305-meter pull box, the cable features a flame-retardant PVC jacket, HDPE insulation, and a central cross separator to minimize crosstalk and maintain signal integrity over long distances.
Key Features
- CAT6 U/UTP network cable

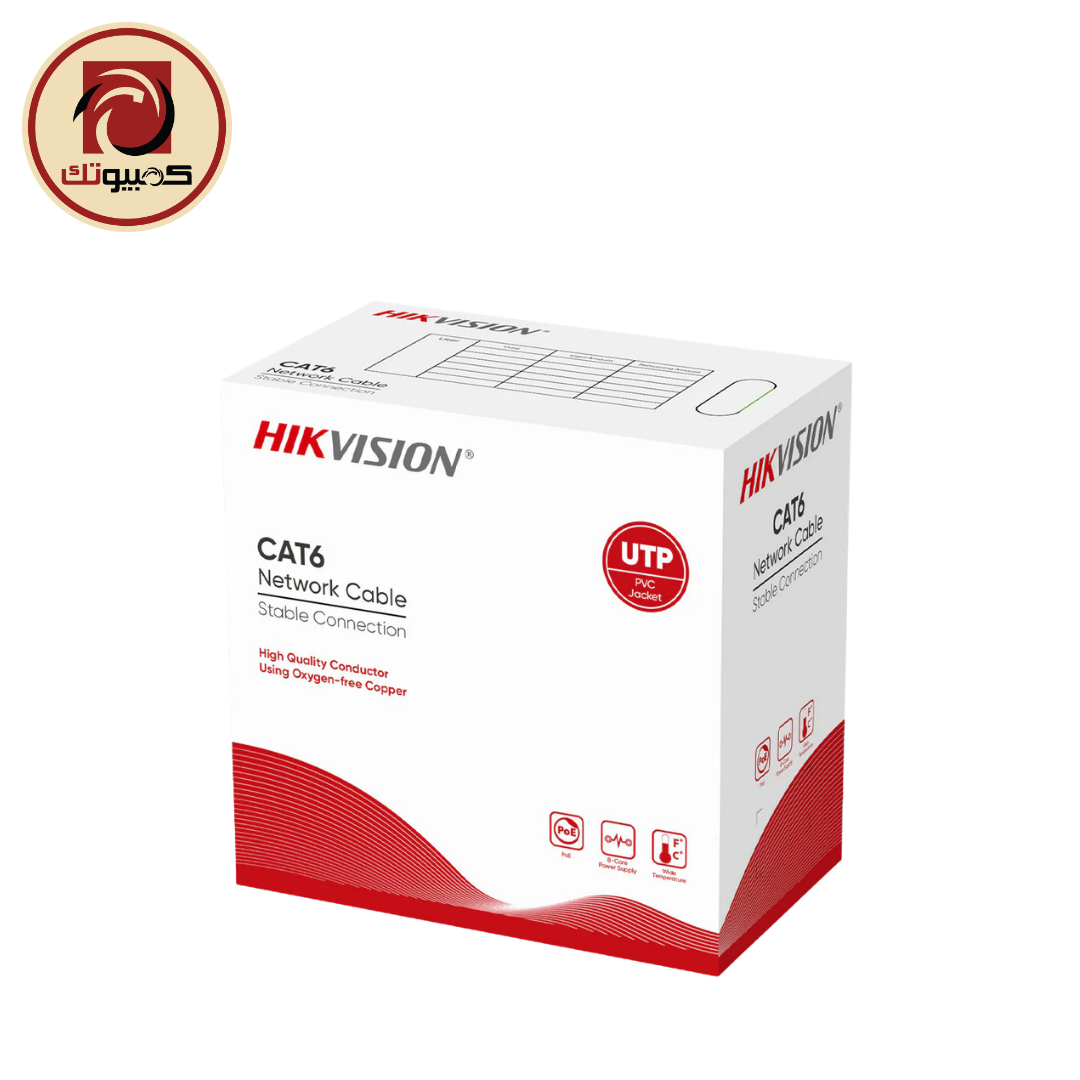

- 305-meter easy-pull box
- 23AWG solid bare copper (99.95%)
- Supports Gigabit Ethernet applications
- 250MHz bandwidth
- Fluke tested for reliable performance

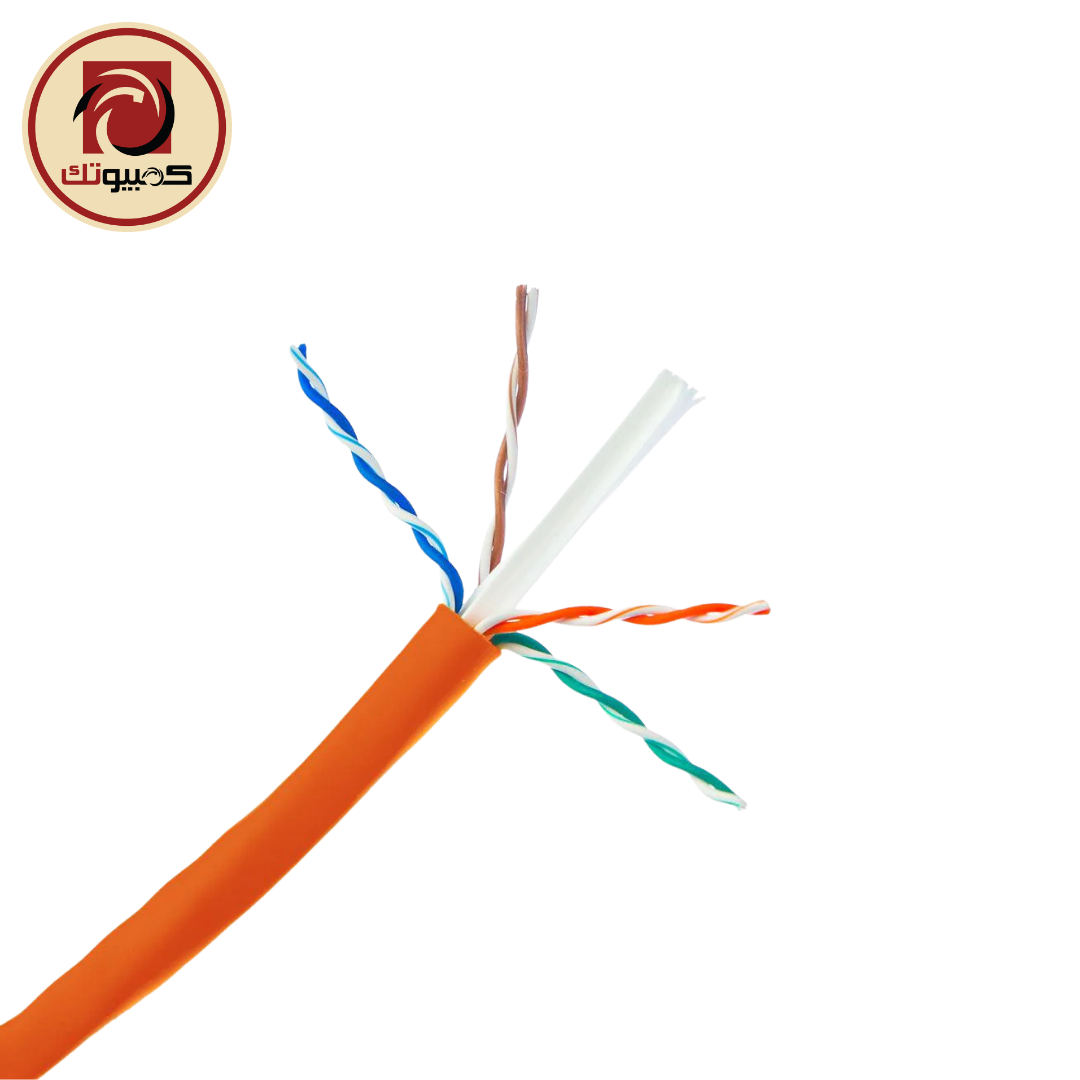

- PE cross separator reduces crosstalk
- CM-rated flame-retardant PVC jacket
- Suitable for PoE, CCTV, LAN, and structured cabling
Technical Specifications
| Feature | Details |
|---|---|
| Product Name | Hikvision DS-1LN6-UU CAT6 UTP Network Cable |
| Brand | Hikvision |
| Model | DS-1LN6-UU |
| Product Type | CAT6 UTP Network Cable |
| Cable Category | CAT6 U/UTP |
| Conductor | 23AWG Solid Bare Copper (99.95%) |
| Conductor Diameter | 0.565 mm |
| Cable Length | 305 Meters |
| Bandwidth | 250 MHz |
| Insulation Material | HDPE |
| Jacket Material | CM PVC |
| Outer Diameter | 6.2 ± 0.4 mm |
| Separator | PE Cross Separator |
| Rip Cord | Yes |
| Cable Color | Orange |
| Standards | ISO/IEC 11801, ANSI/TIA-568.2-D, UL CM, RoHS 2.0 |
