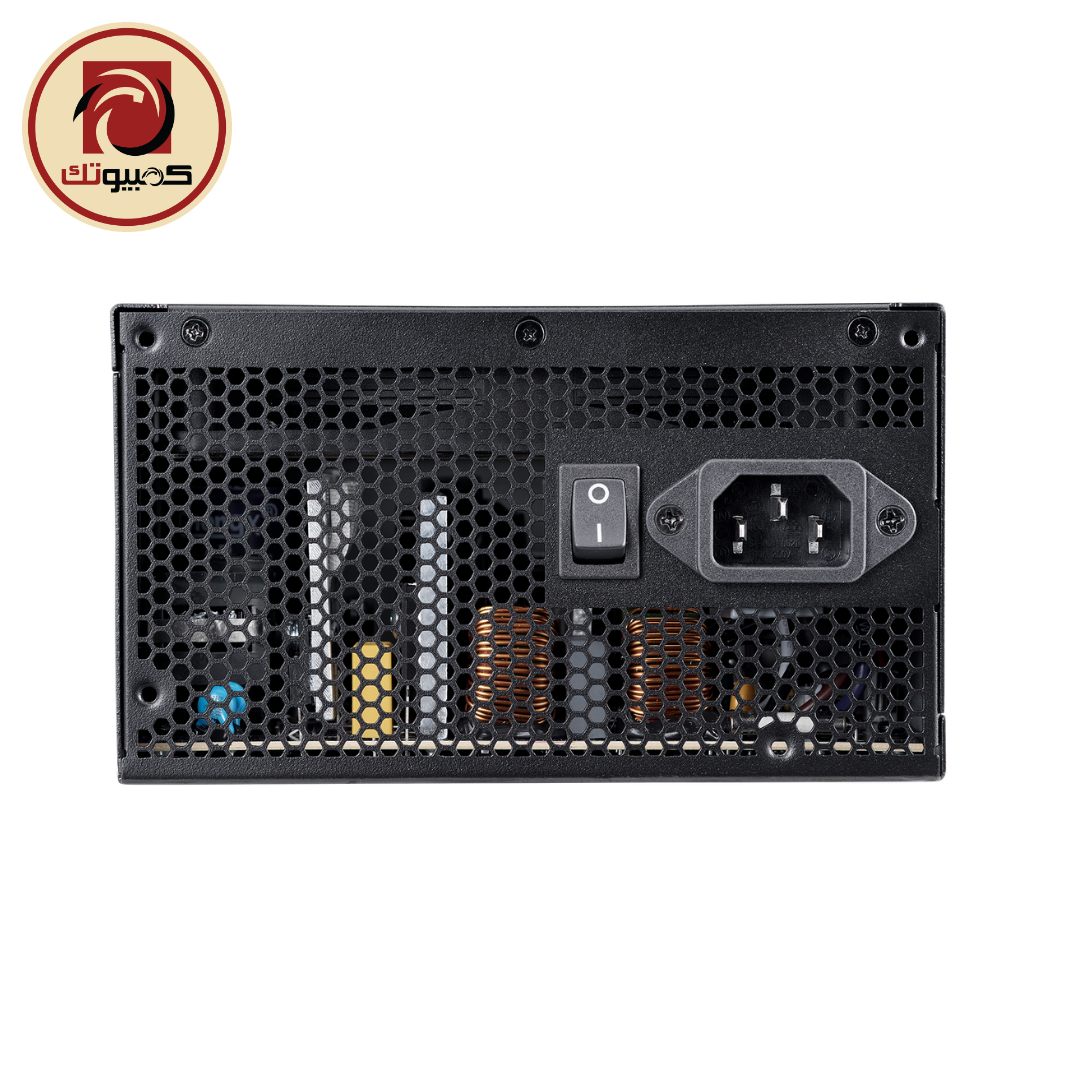

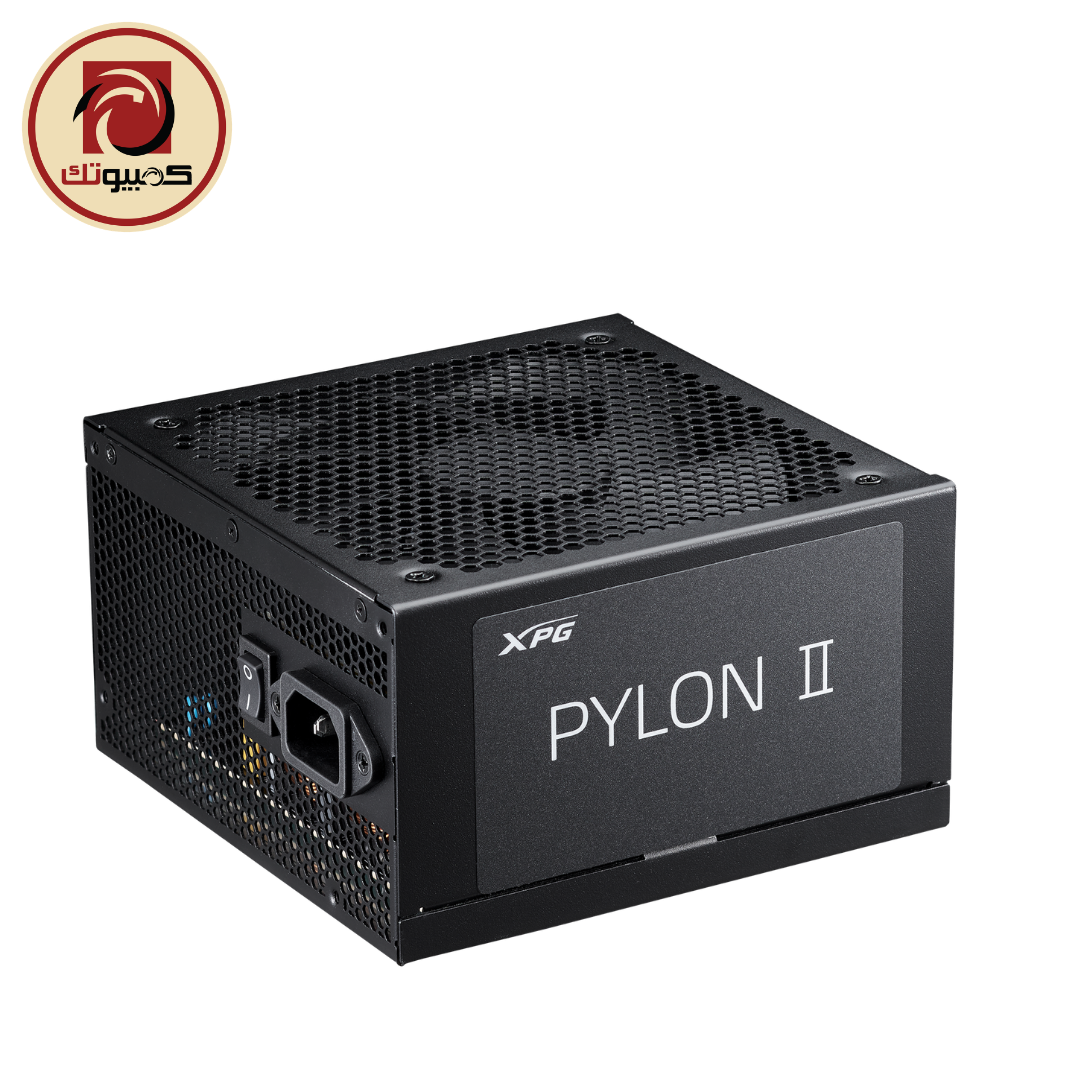

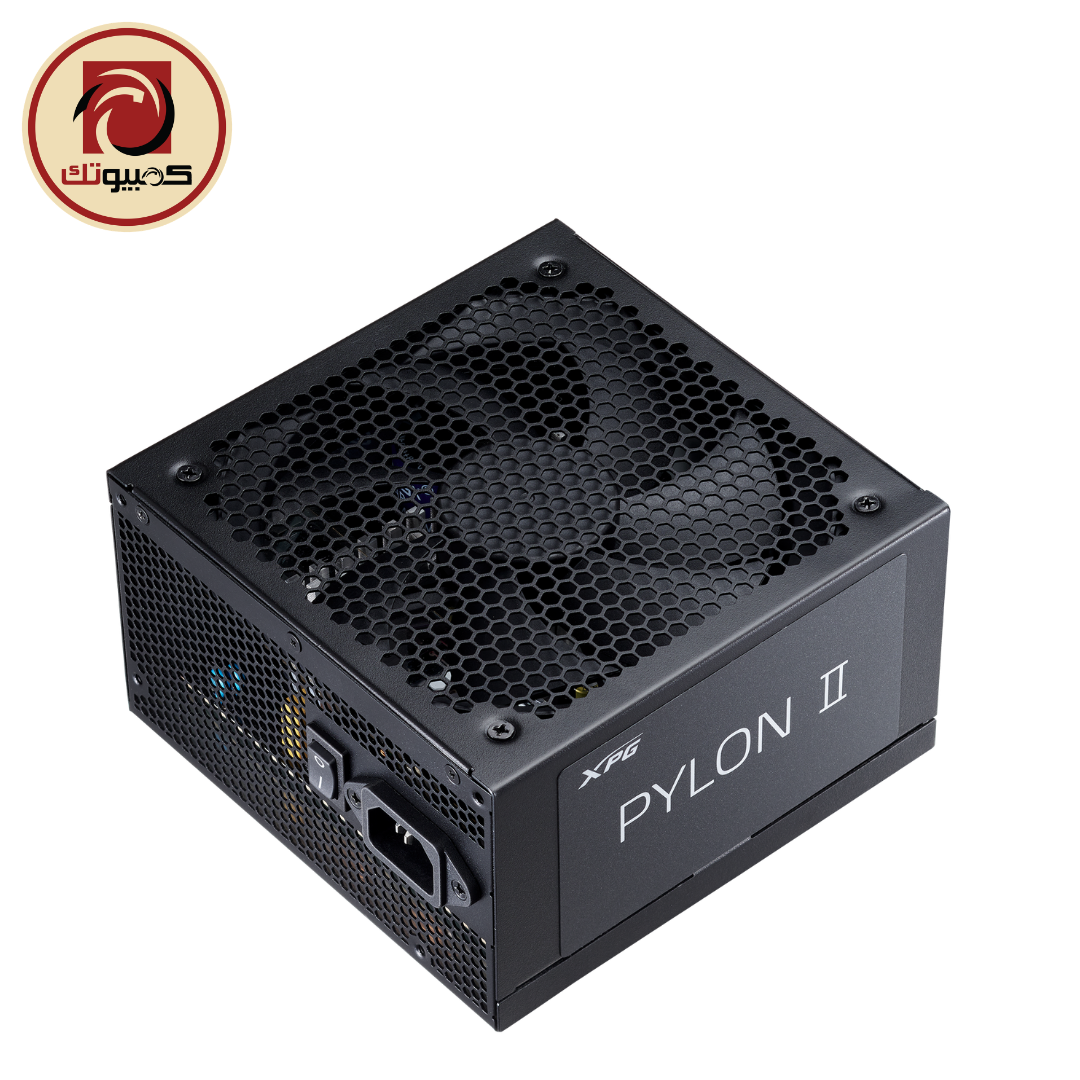

XPG PYLON II 750W ATX 3.1 80 PLUS Bronze Power Supply

The XPG PYLON II 750W is an ATX 3.1 power supply designed for modern gaming PCs and high-performance desktop systems. It combines 750W of power, 80 PLUS Bronze efficiency, Cybenetics Silver certification, and a native 12V-2×6 connector for compatibility with current-generation graphics cards.

Built according to the Intel ATX 3.1 standard, the PYLON II is designed to handle the transient power demands of modern high-performance components. Its native 12V-2×6 connector supports up to 450W, providing a direct power connection for compatible GPUs without relying on multiple legacy connectors.

The power supply delivers up to 62.5A on the +12V rail, providing a strong single-rail power source for the CPU and graphics card. It also supports power excursions of up to 1762W for 100 microseconds, equivalent to up to 235% of its rated power.

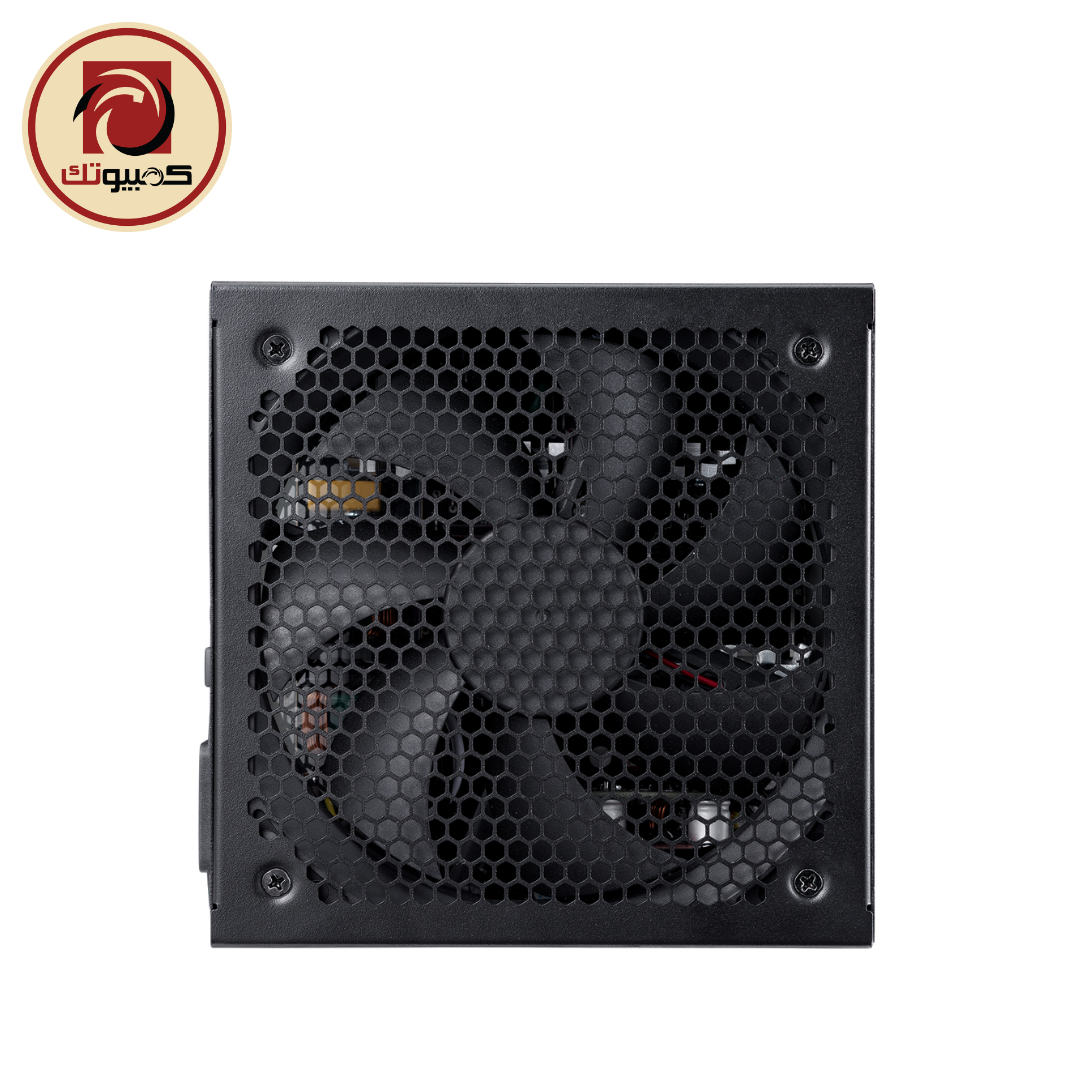

Cooling is handled by a 135mm Fluid Dynamic Bearing (FDB) fan. The FDB design provides smooth and durable operation while helping maintain effective cooling under demanding loads.

The PYLON II 750W carries both 80 PLUS Bronze and Cybenetics Silver efficiency certifications. These certifications indicate efficient power conversion and reduced energy waste during operation.

For system protection, the PYLON II includes eight protection mechanisms: Over Voltage Protection, Over Power Protection, Short Circuit Protection, Over Current Protection, Under Voltage Protection, Over Temperature Protection, No Load Operation Protection, and Surge & Inrush Protection.

With a standard 150 × 150 × 86mm ATX form factor, the PYLON II 750W fits a wide range of compatible PC cases. It also comes with a 5-year warranty for long-term reliability.

Key Features

• 750W continuous power output
• 80 PLUS Bronze efficiency certification
• Cybenetics Silver efficiency certification
• Intel ATX 3.1 compliant
• Native 12V-2×6 450W connector
• +12V rail rated at 62.5A
• Up to 1762W power excursion for 100μs
• 135mm Fluid Dynamic Bearing fan
• 2300 ±10% RPM maximum fan speed
• Eight industrial-grade protection systems
• 100,000-hour MTBF at 25°C
• Standard ATX 150mm form factor
• 5-year warranty
